1991 Range Rover Classic Vogue
VIEW PROJECT IMAGES

Start your restoration journey with us today

The Project

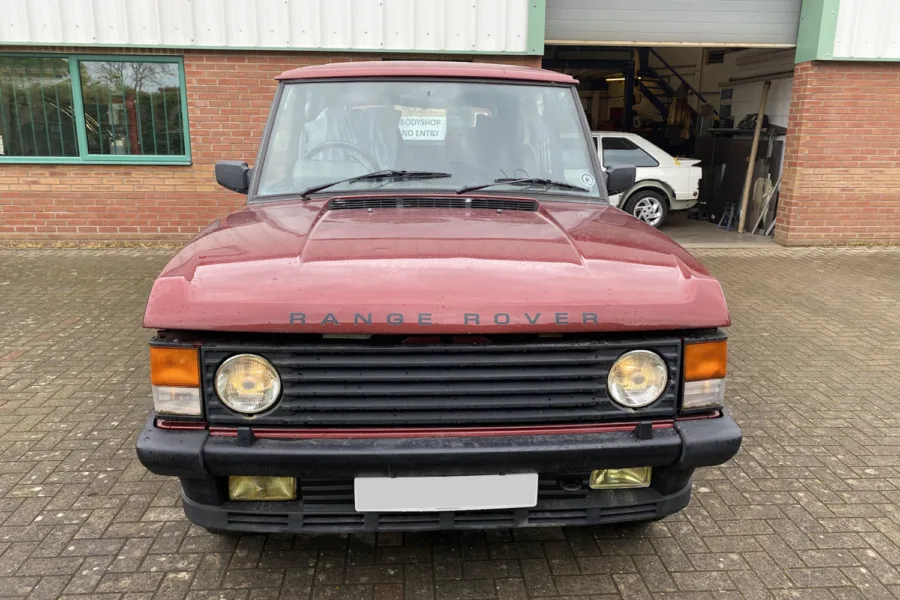

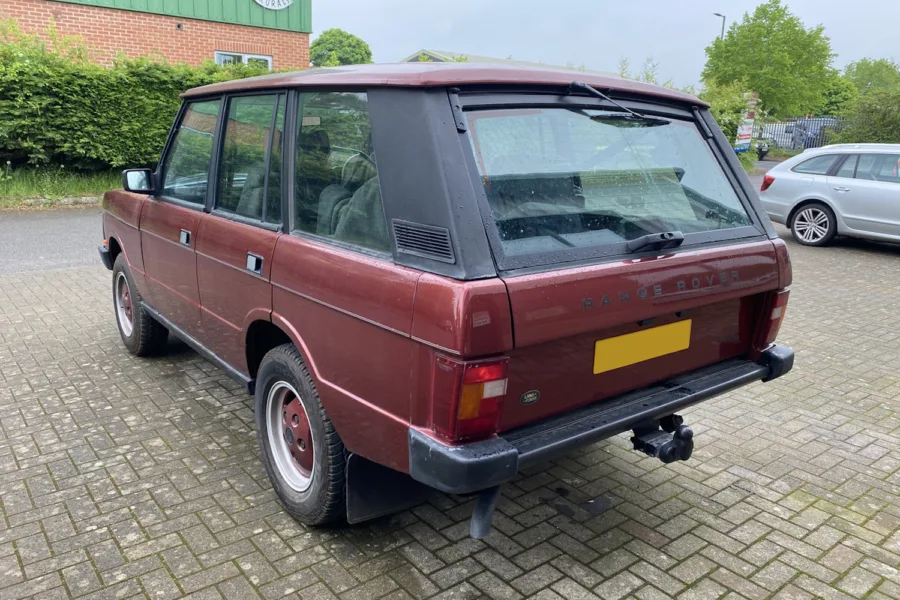

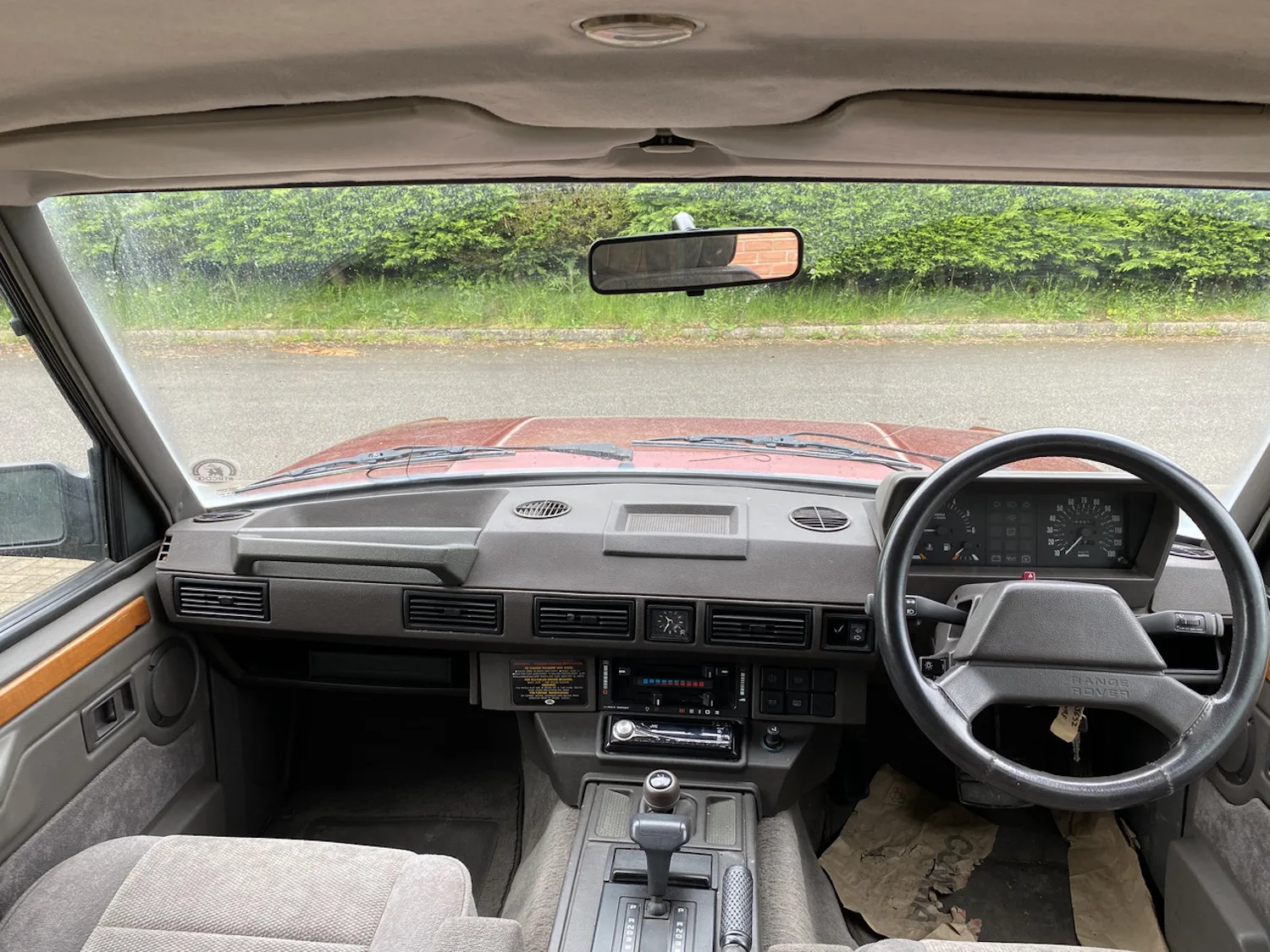

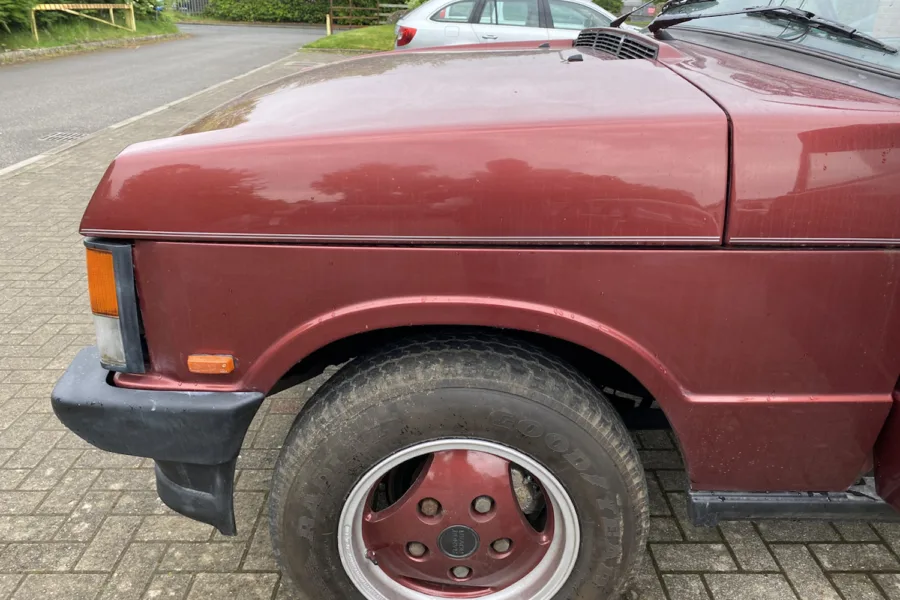

1991 Range Rover Classic Vogue arrived at our workshop in May 2024. It’s in for a full restoration, including bodywork, mechanical and paintwork.

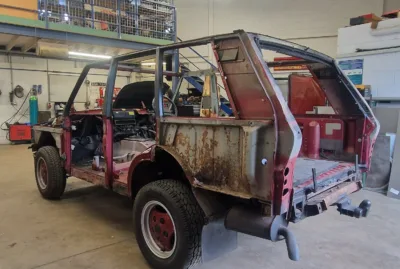

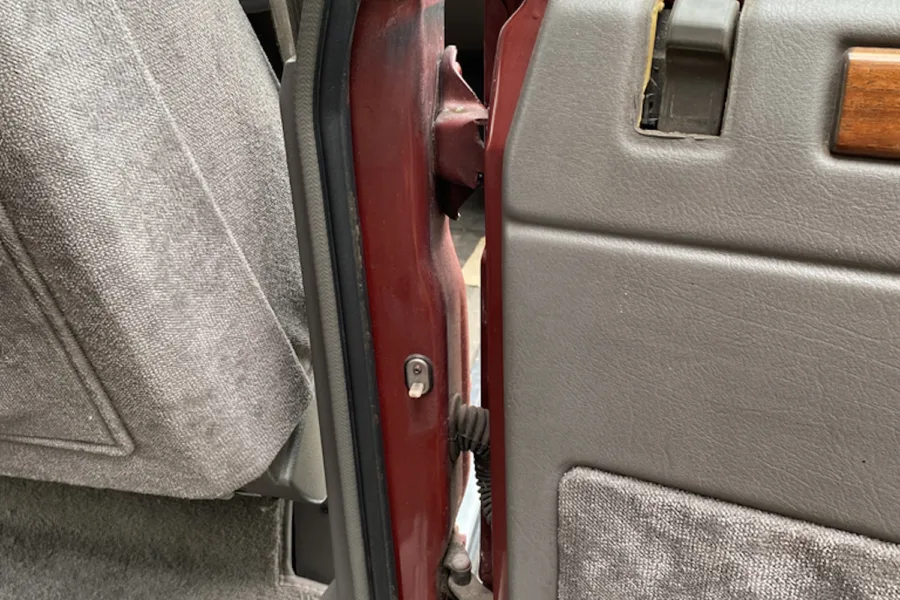

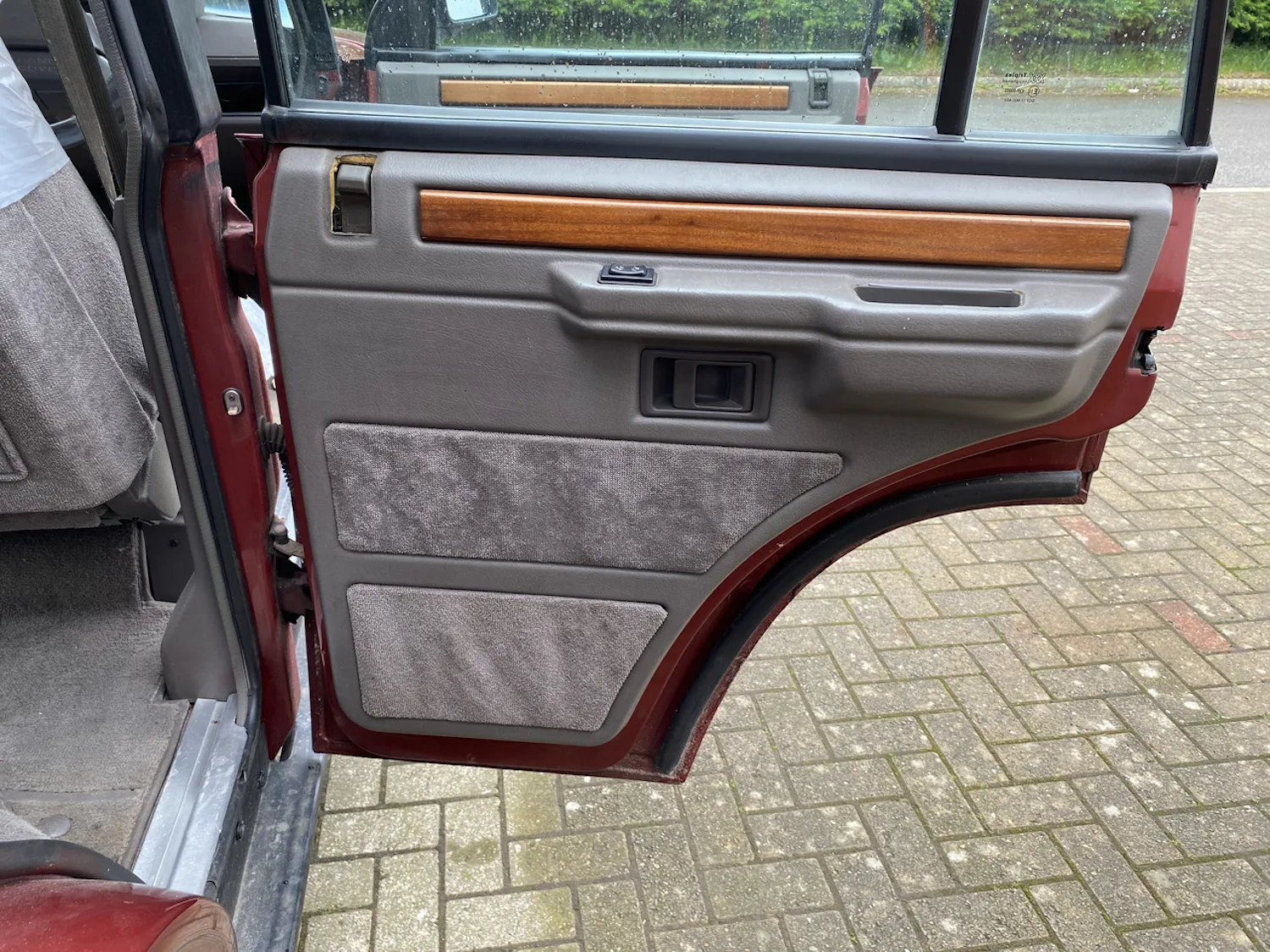

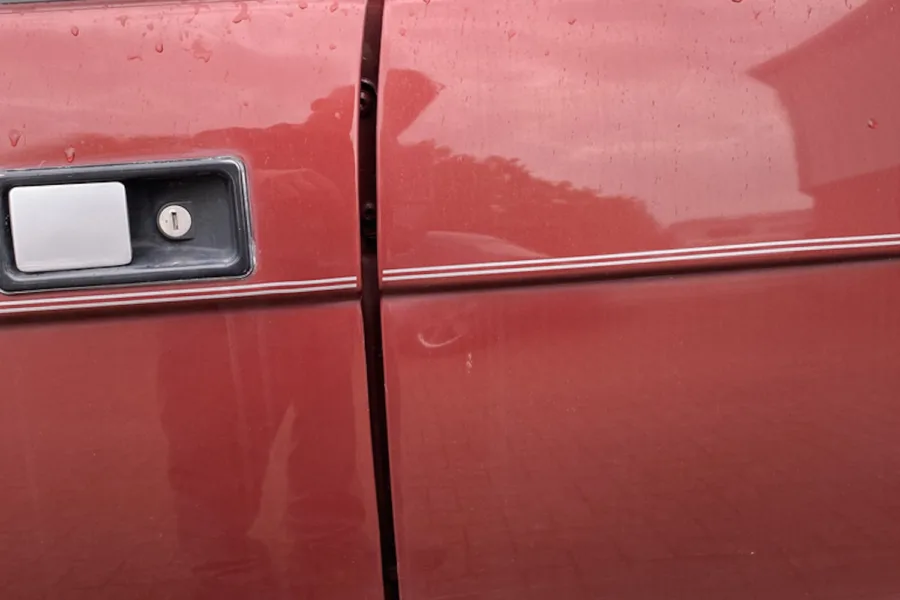

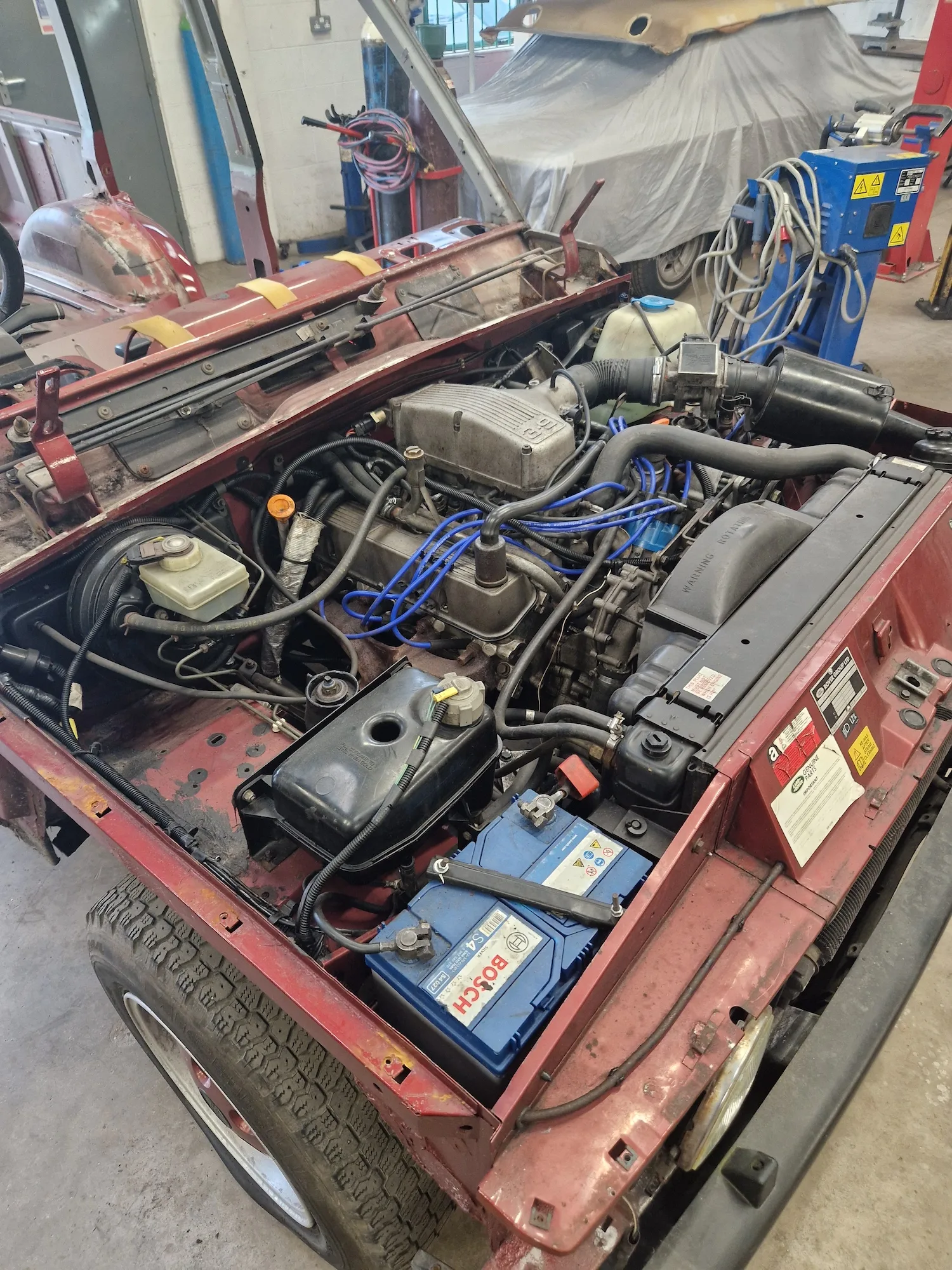

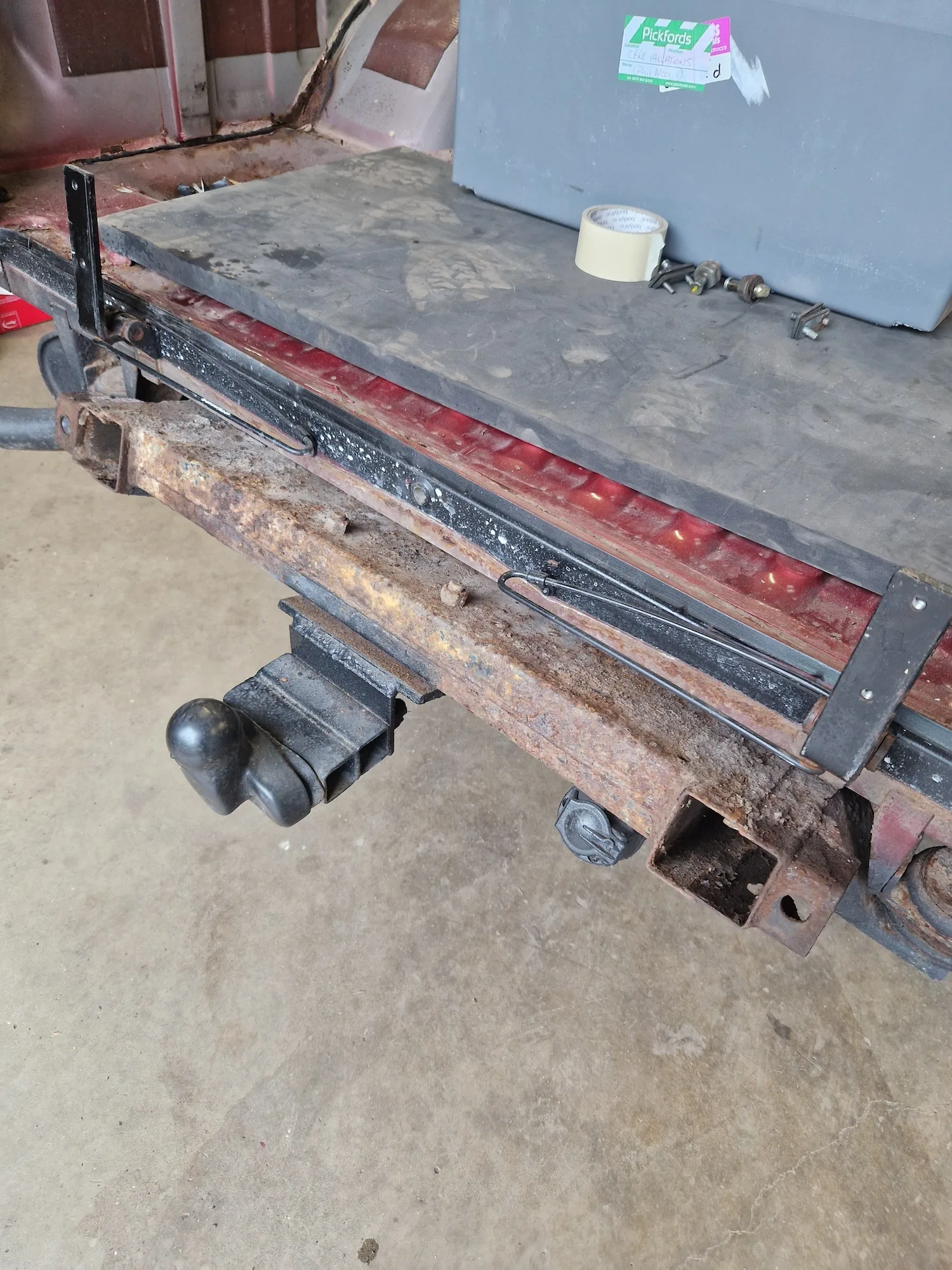

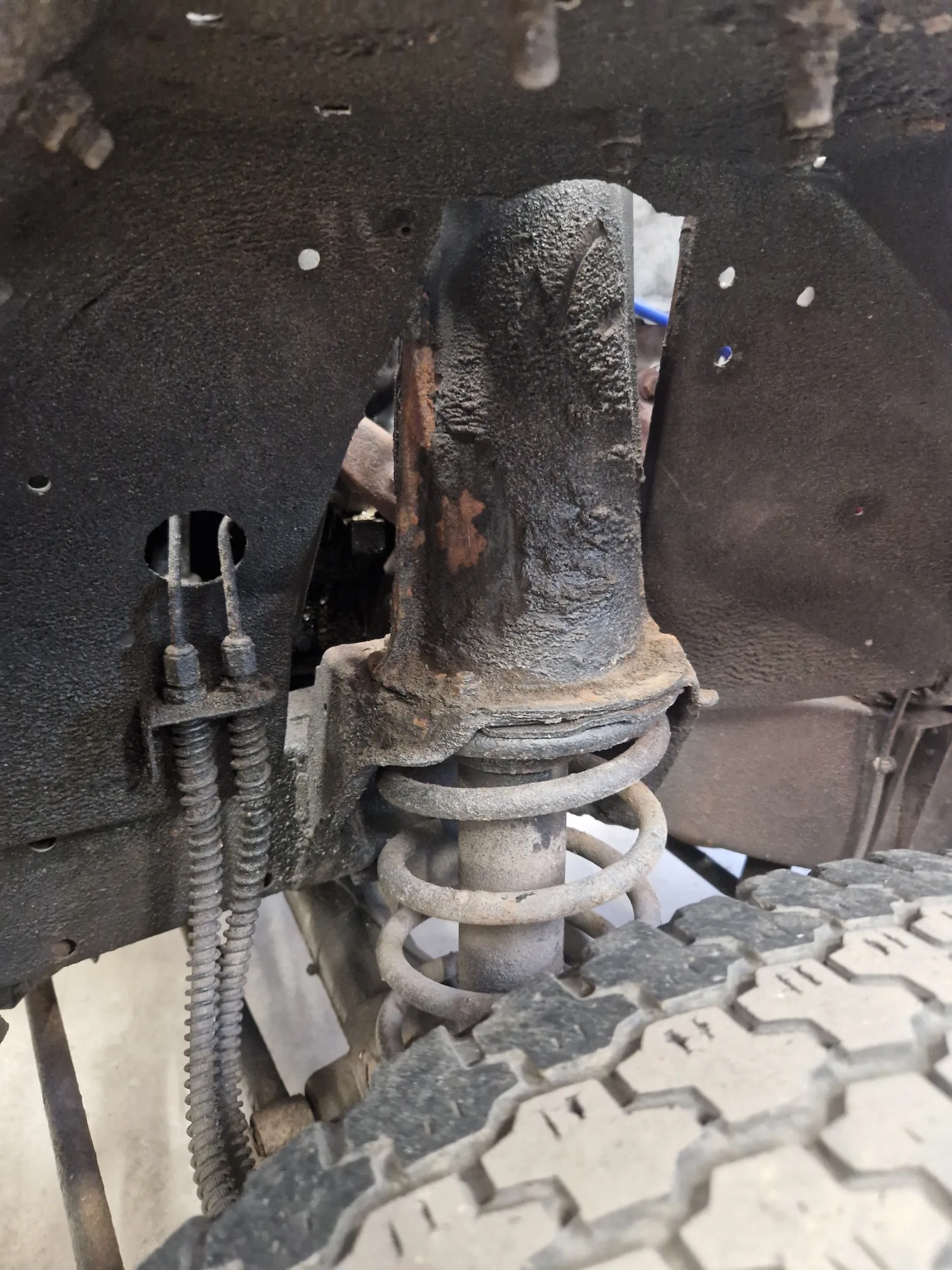

22nd May 2024: First strip down has been done and assessment of initial works complete.

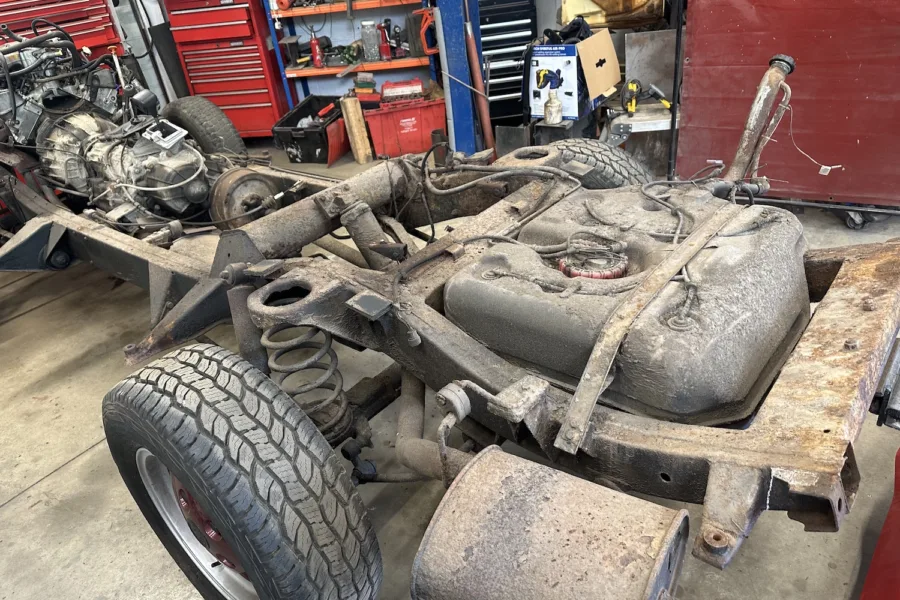

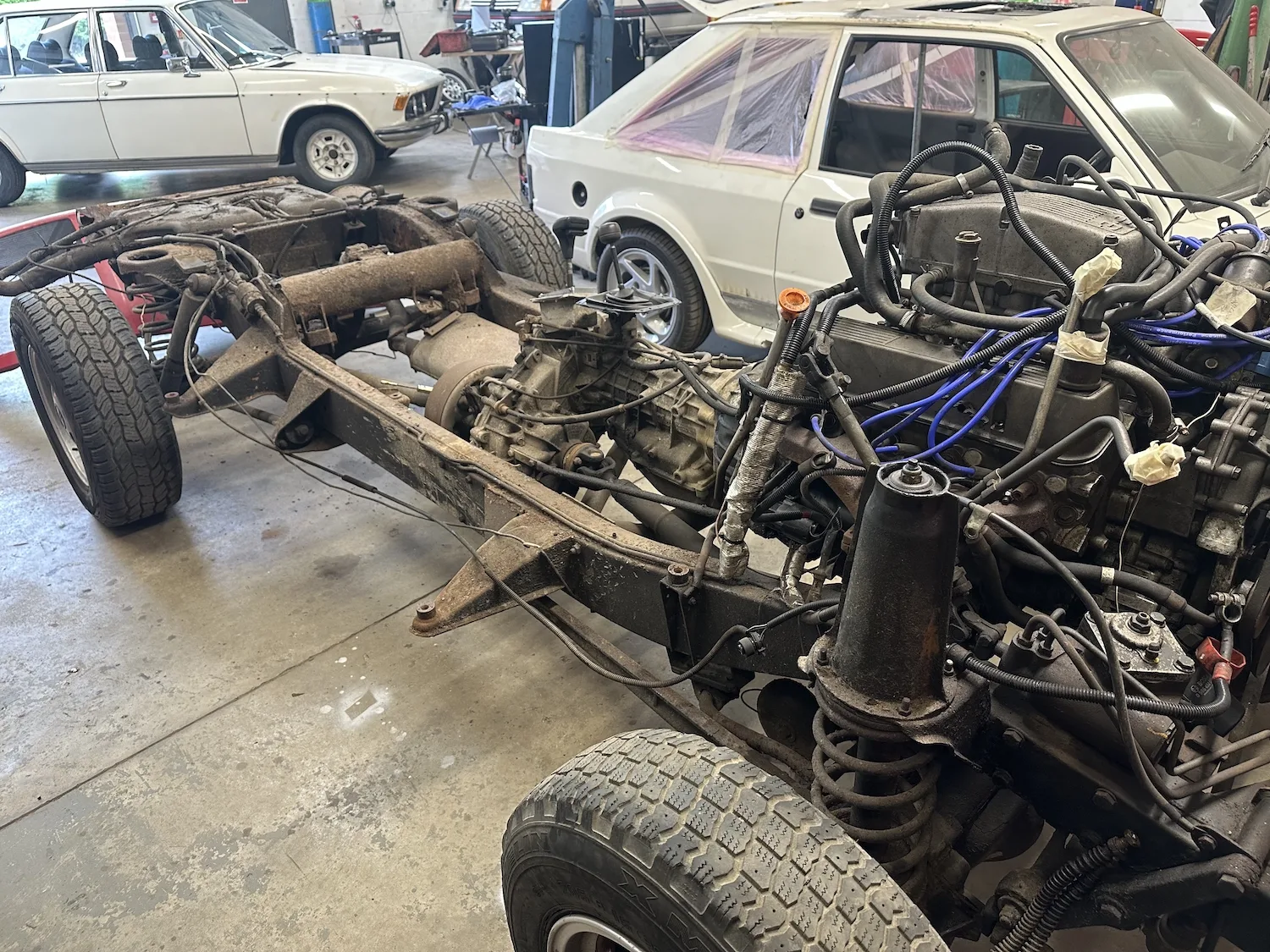

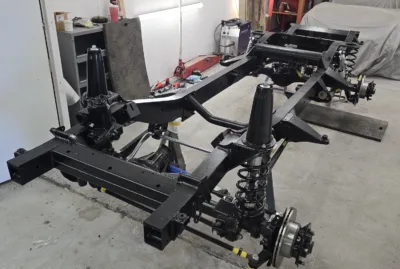

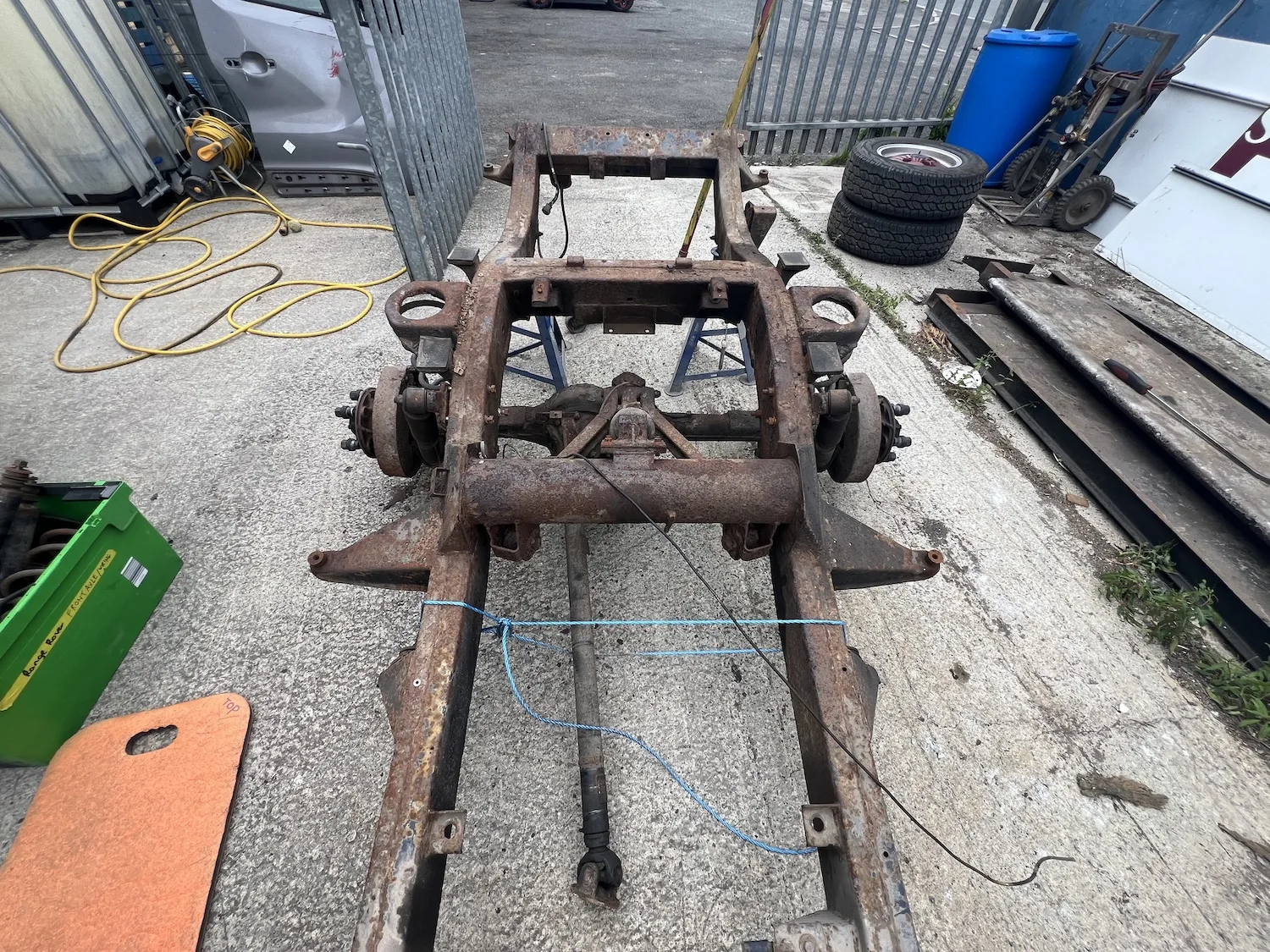

3rd July 2024: The body and chassis have now been separated for the body to be sent for shot blasting. The chassis is now being inspected for its condition and repairs required.

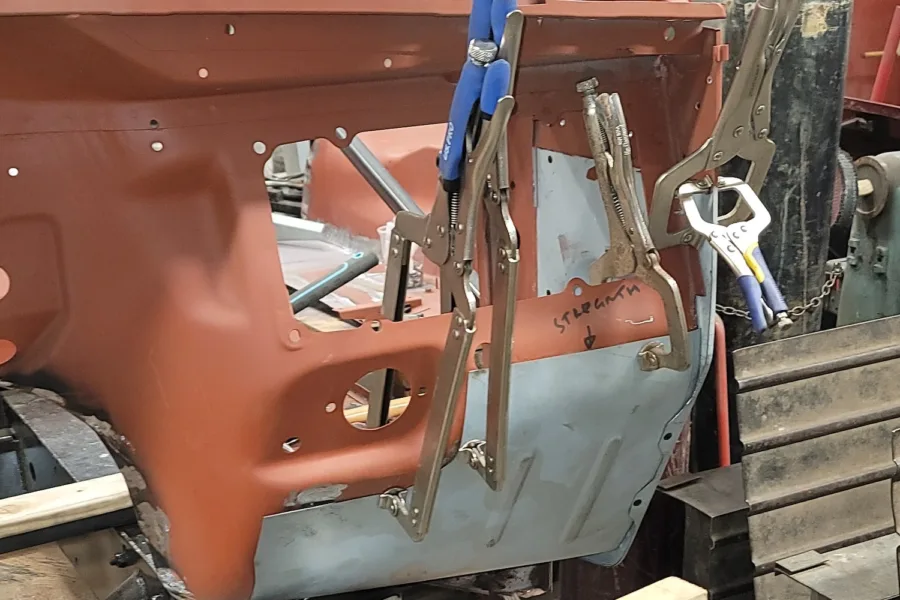

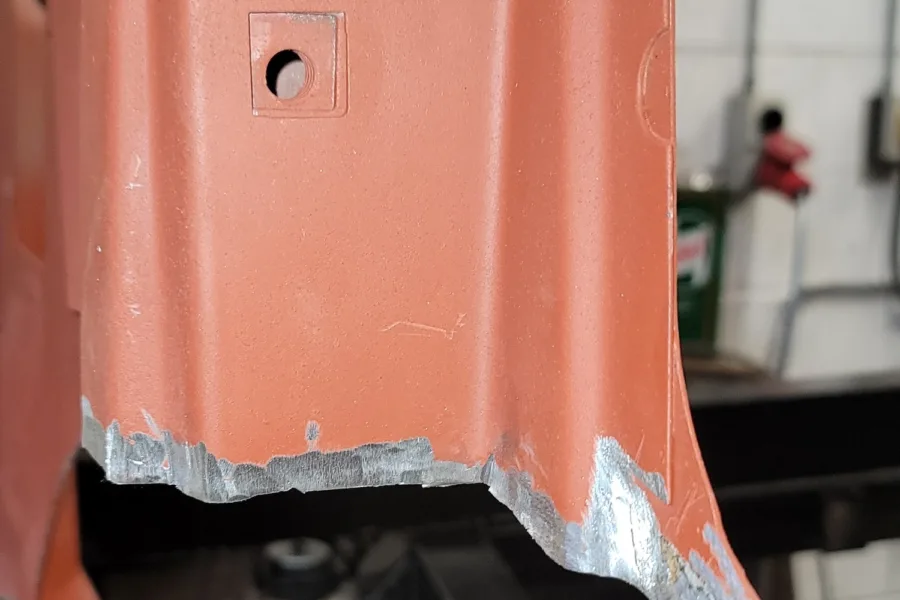

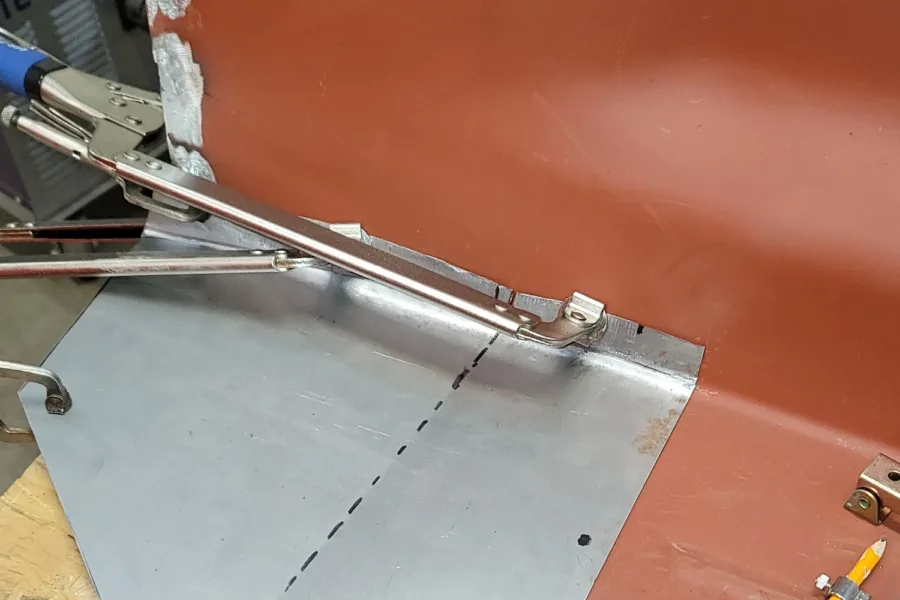

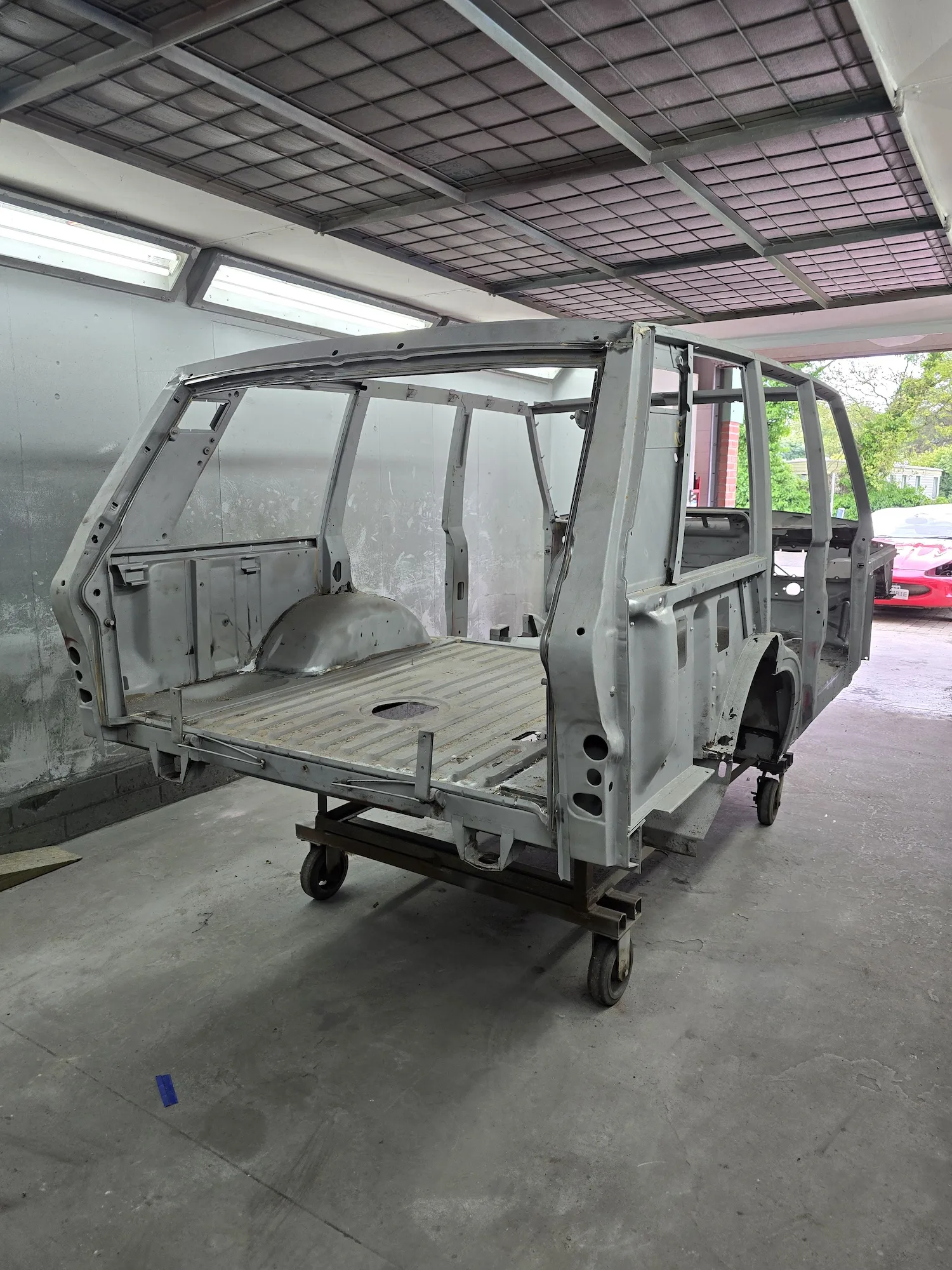

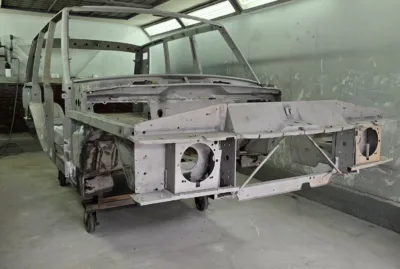

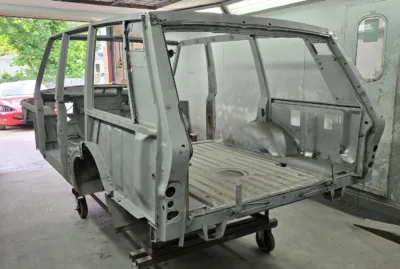

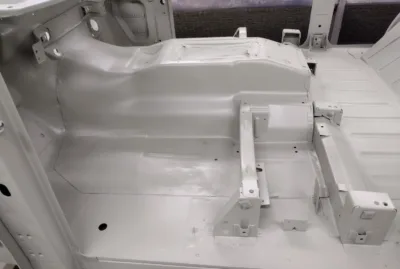

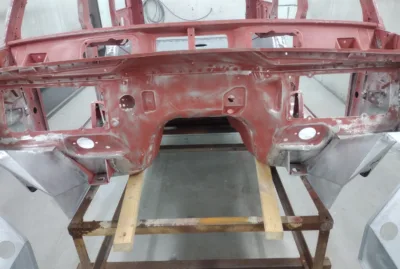

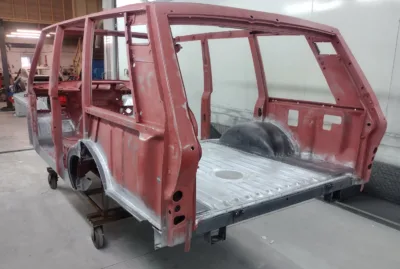

16th July 2024: The body has been shot blasted and the fabrication repairs can now be started.

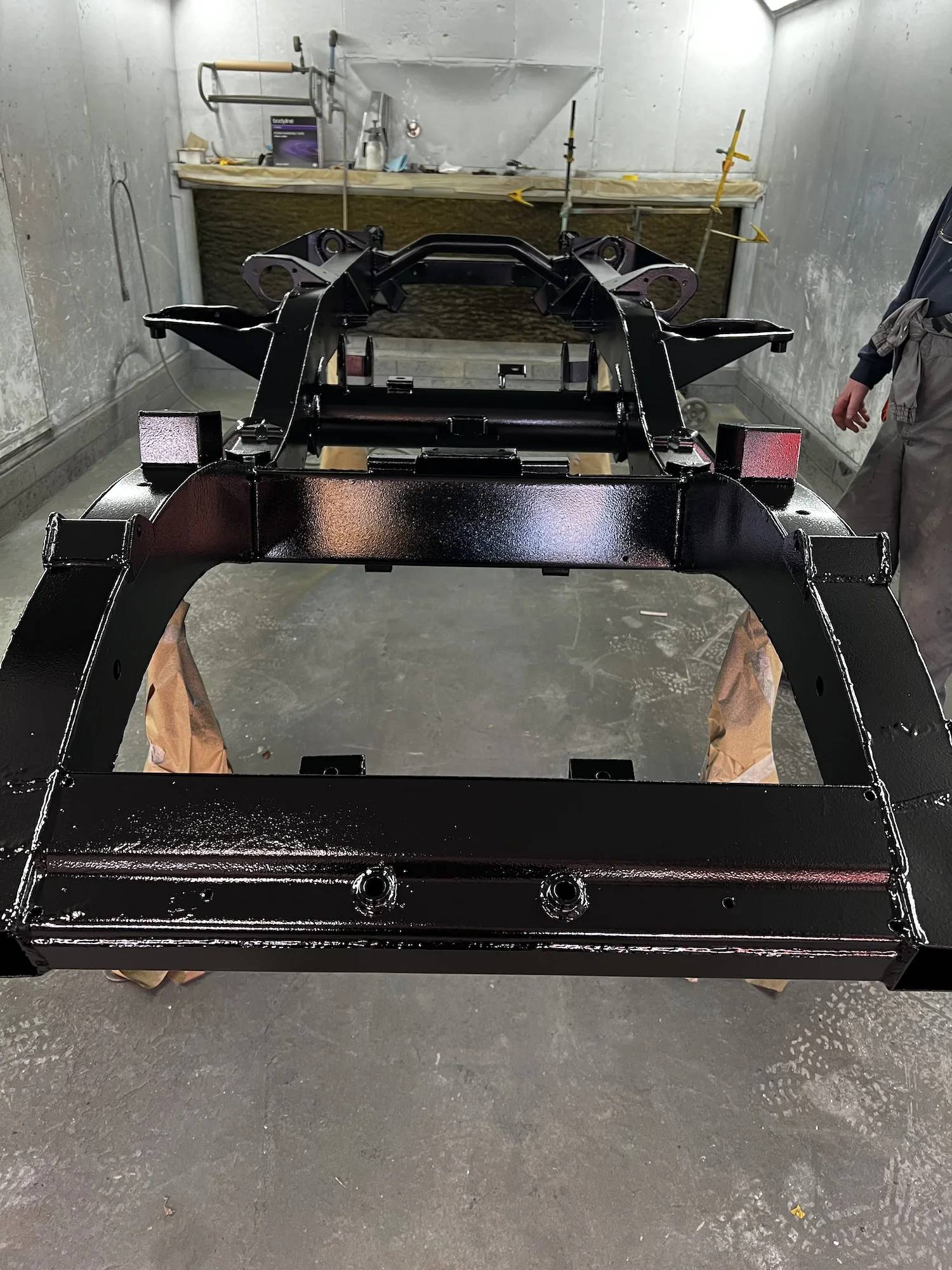

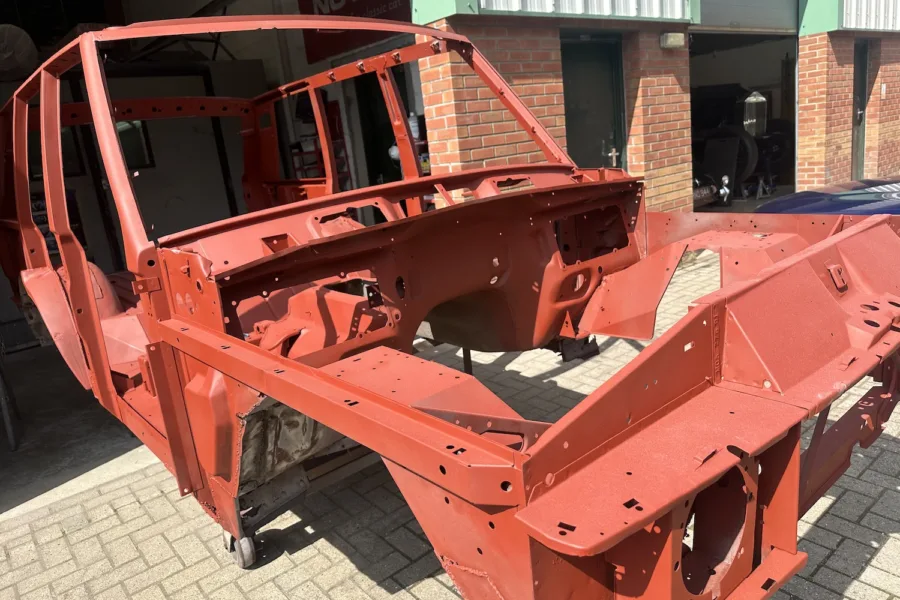

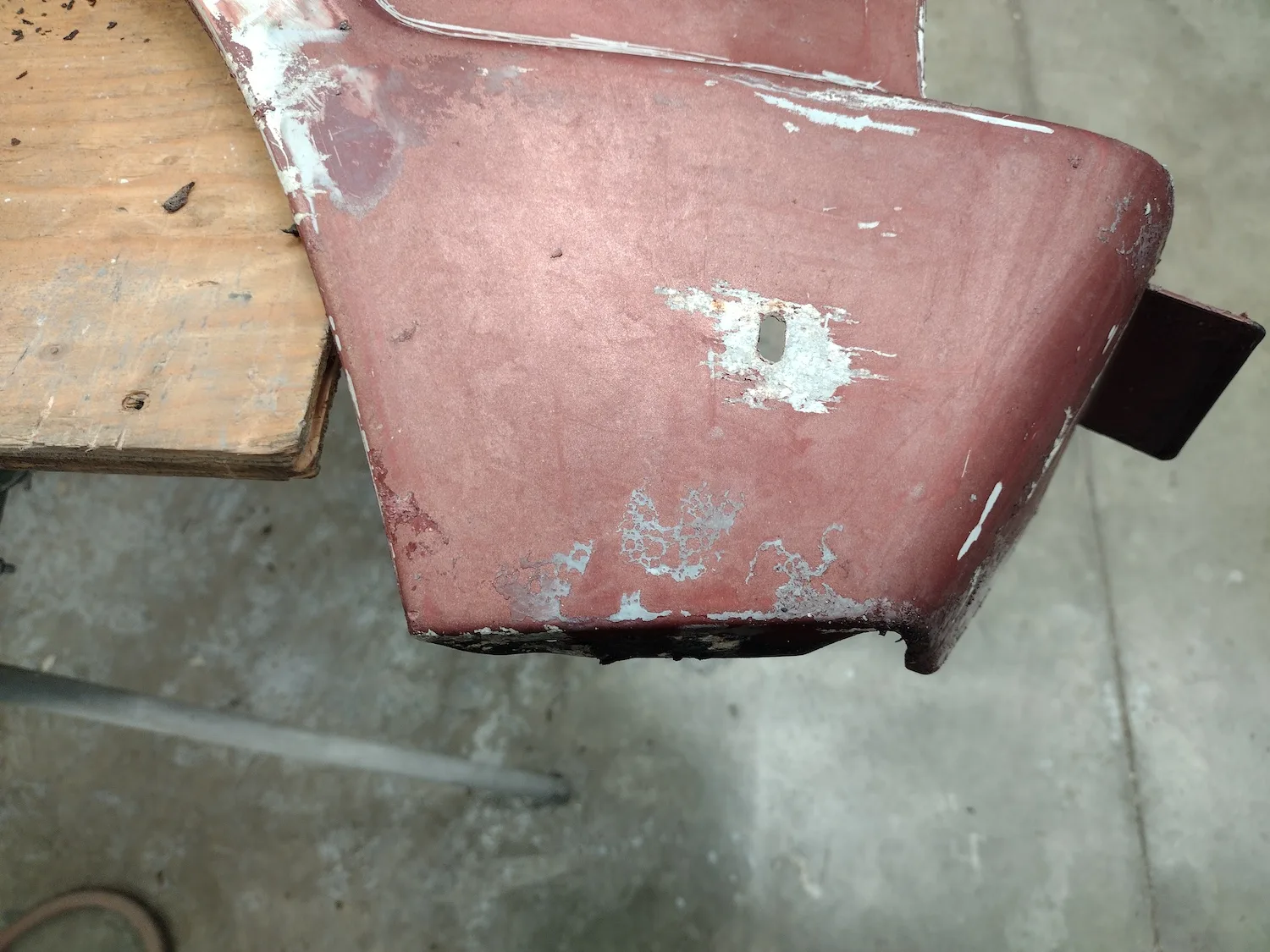

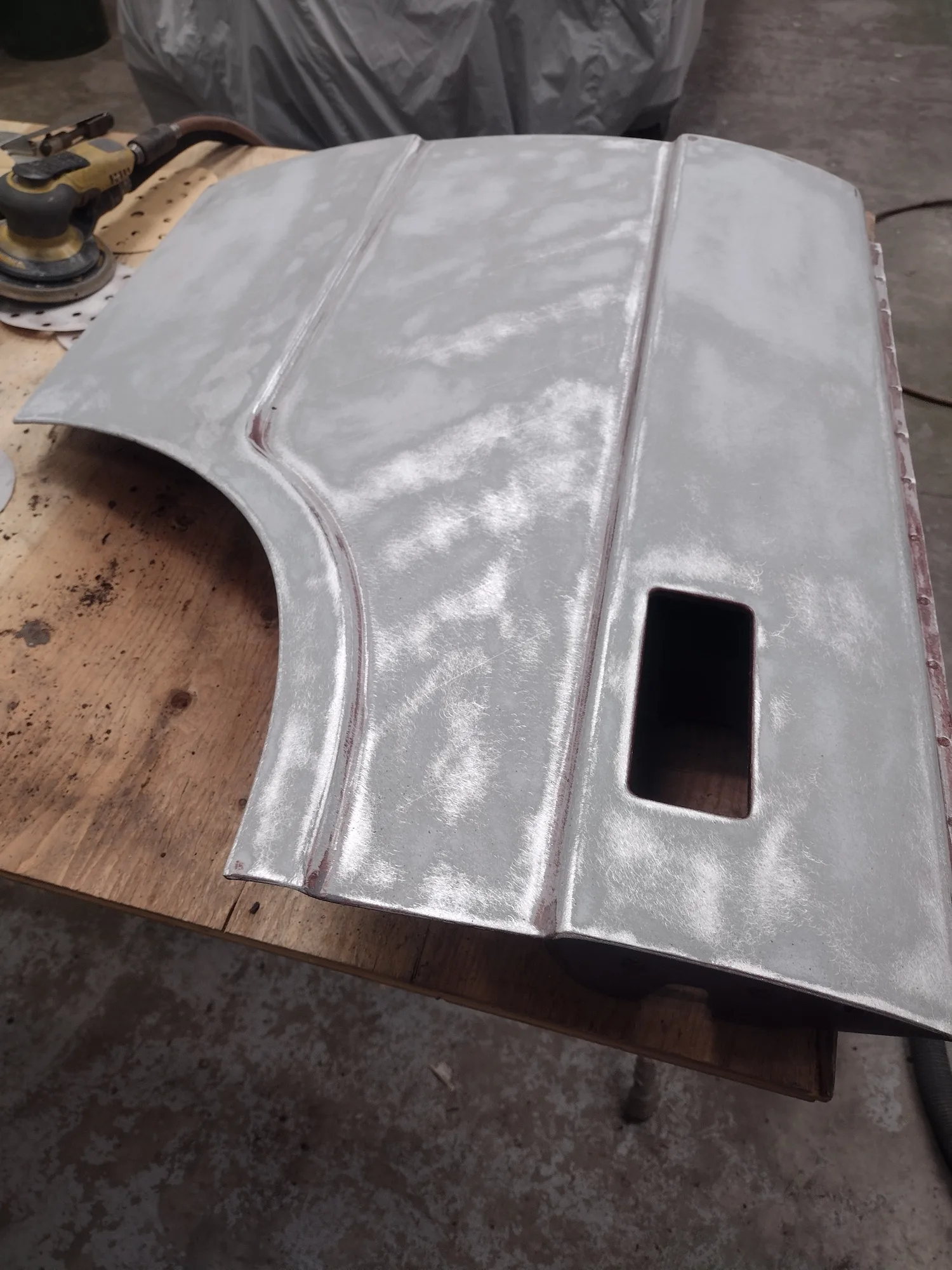

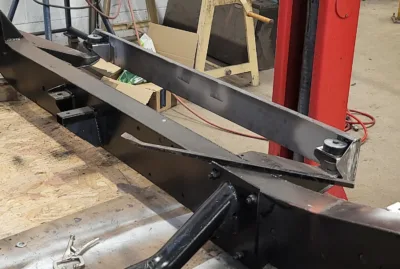

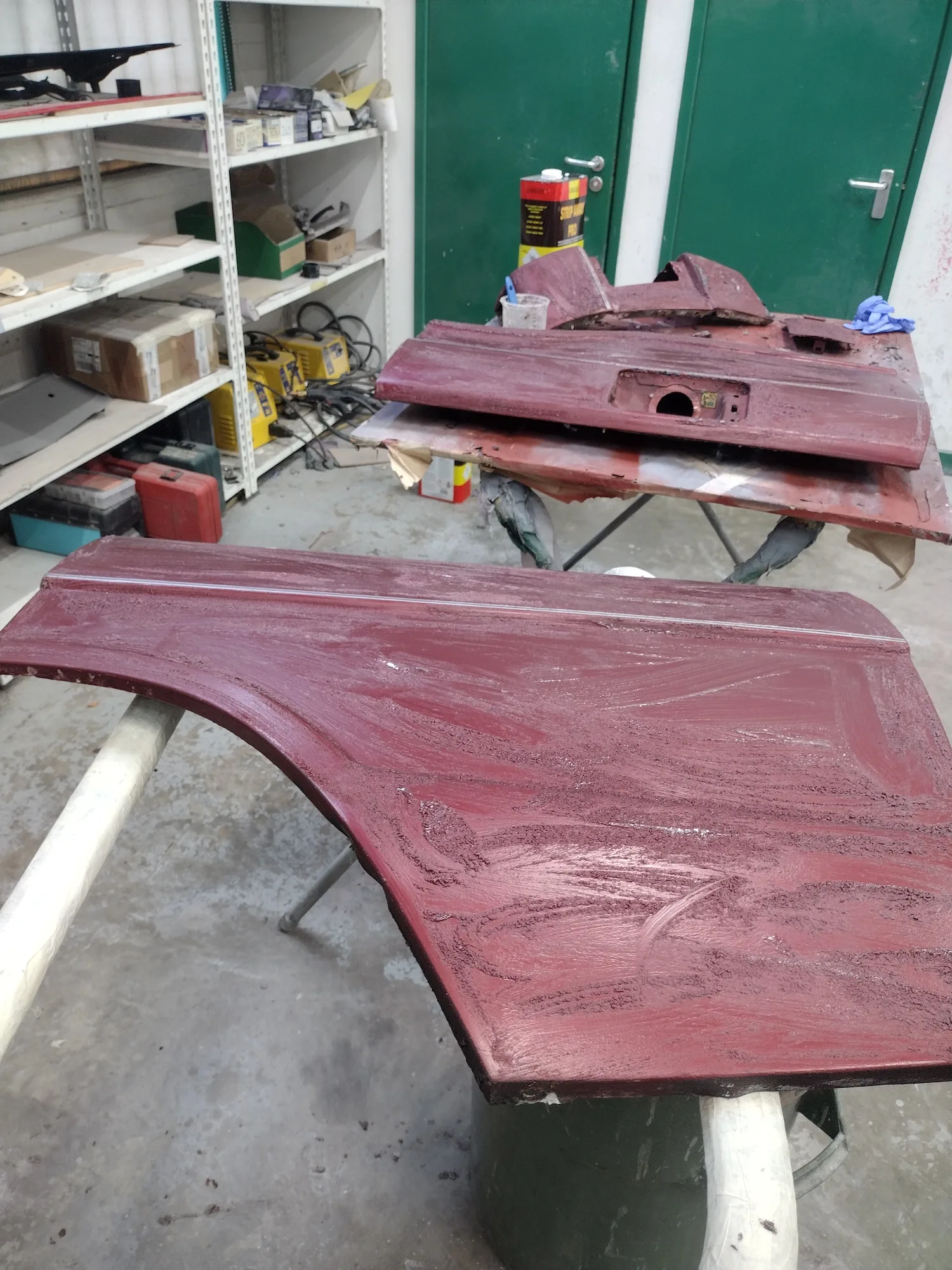

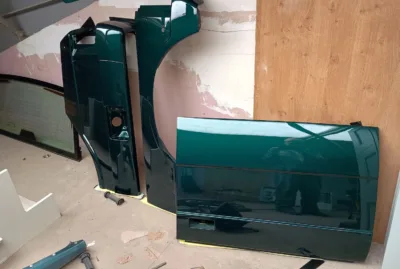

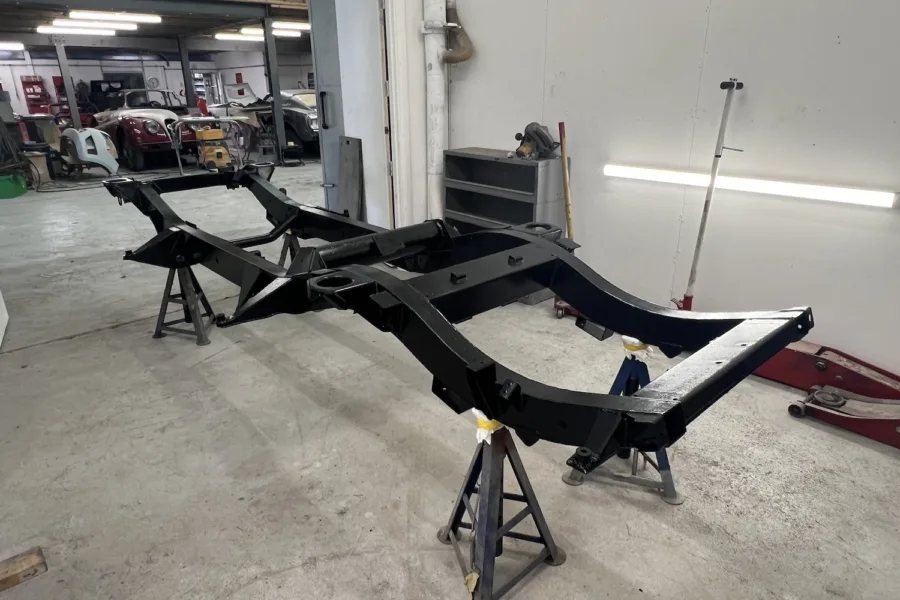

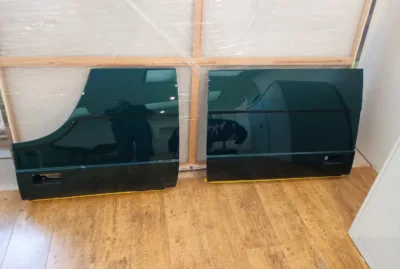

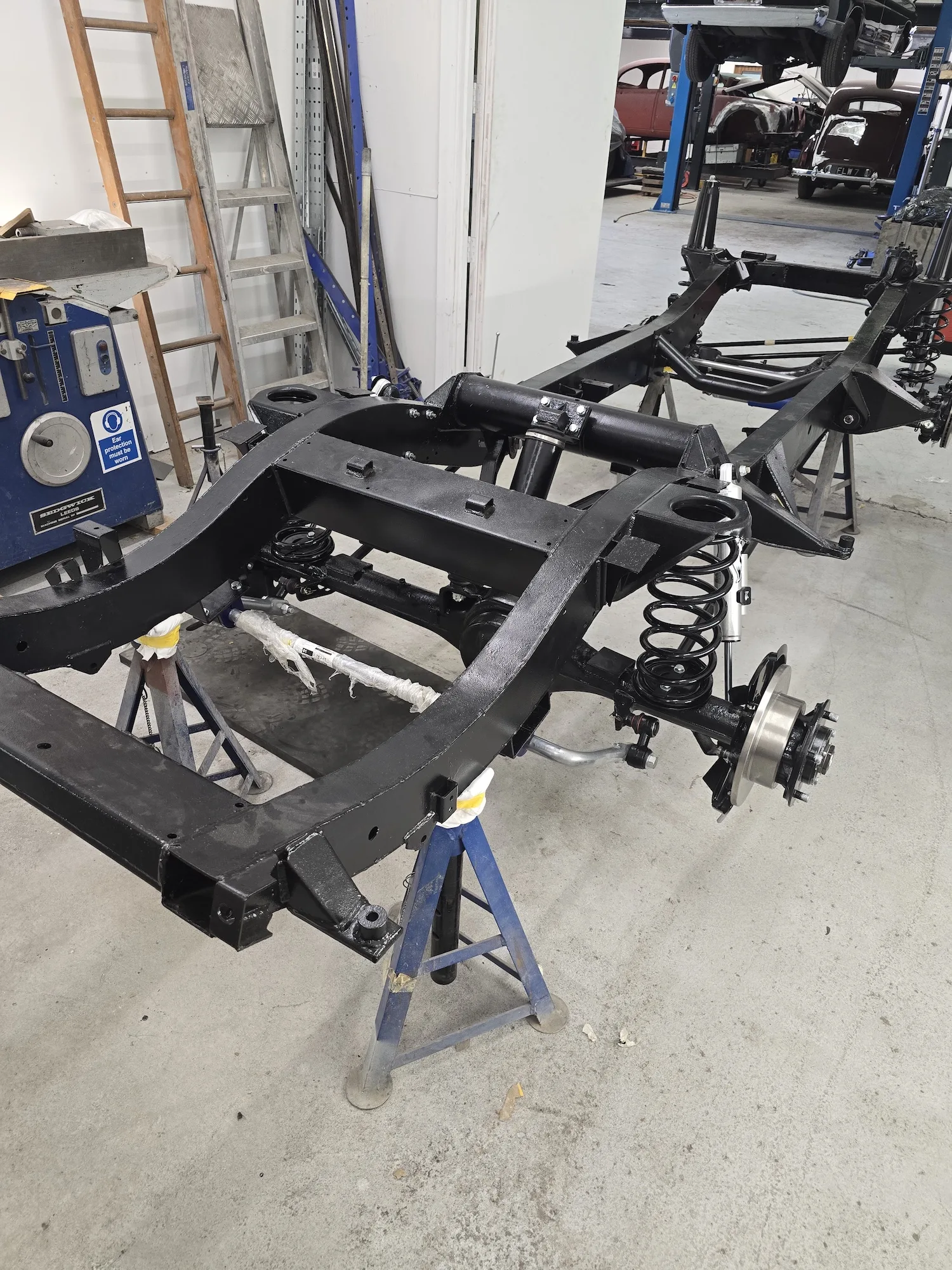

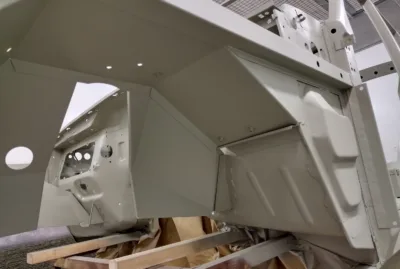

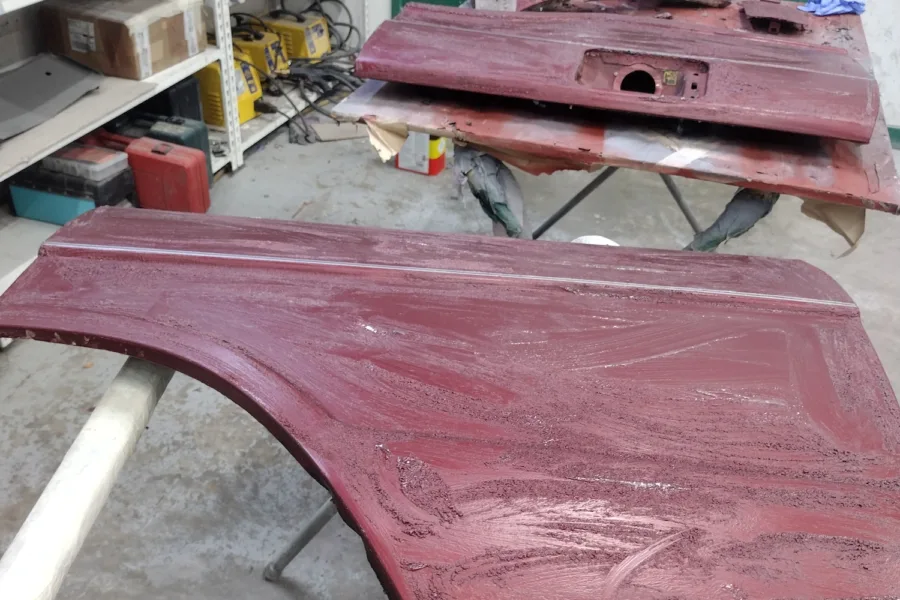

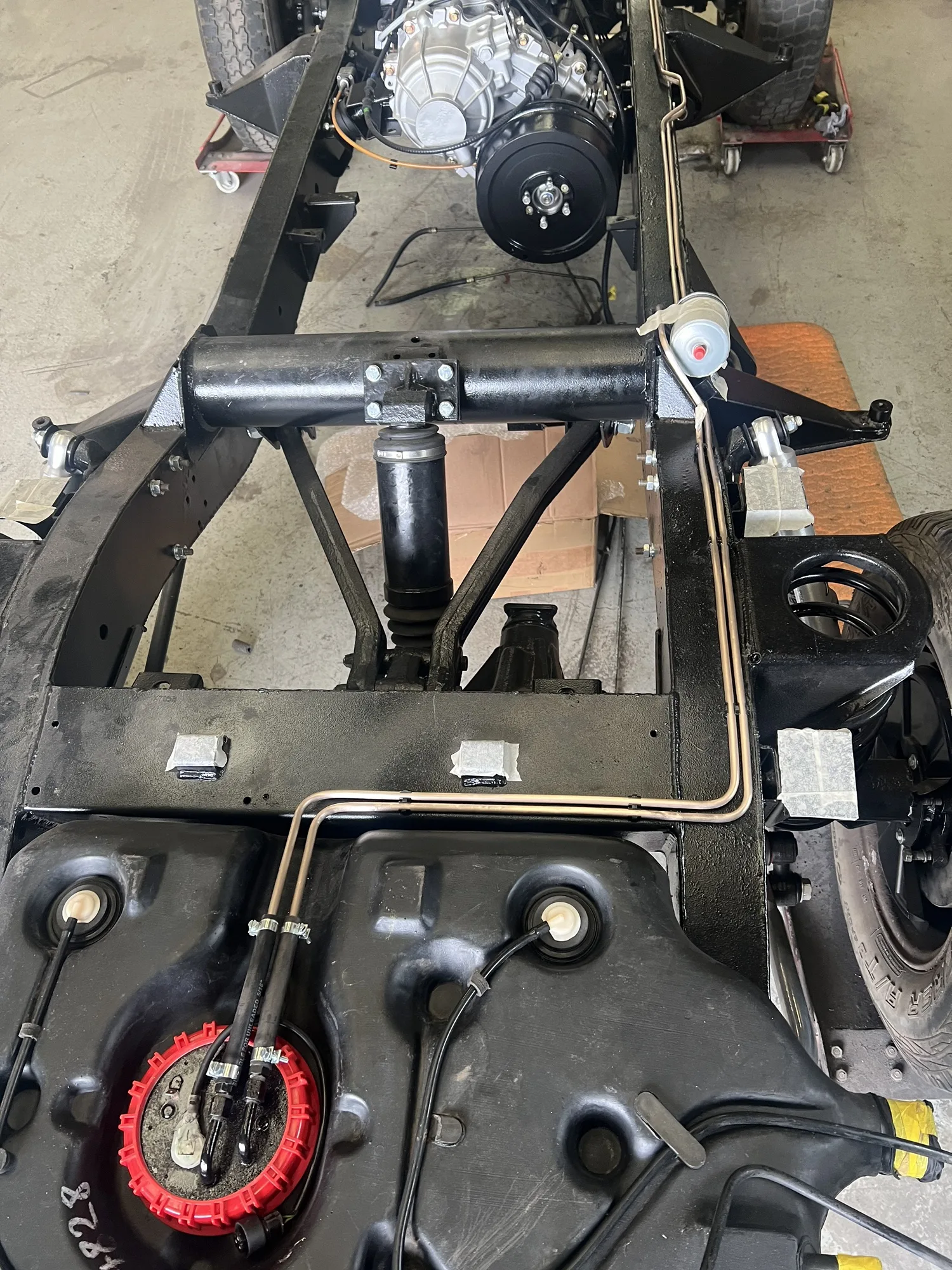

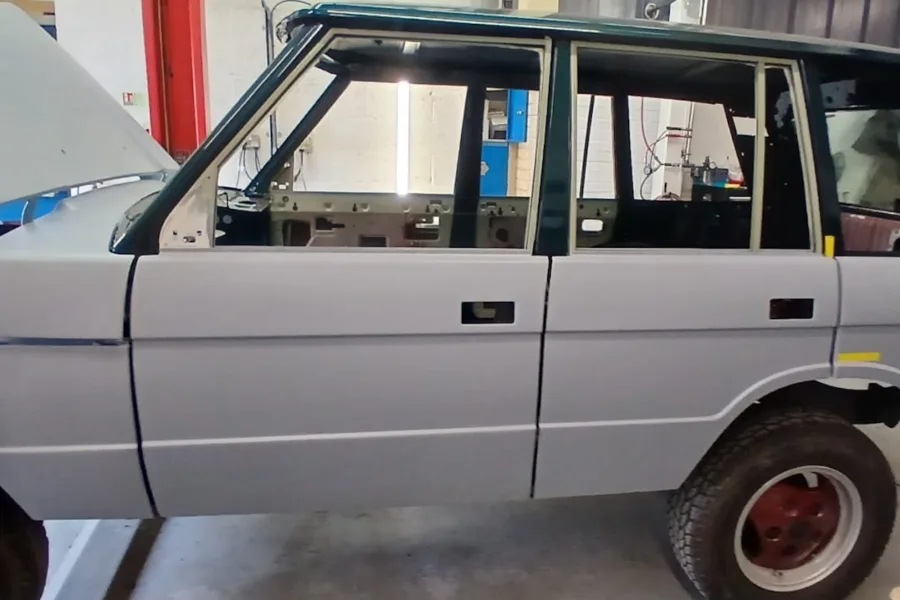

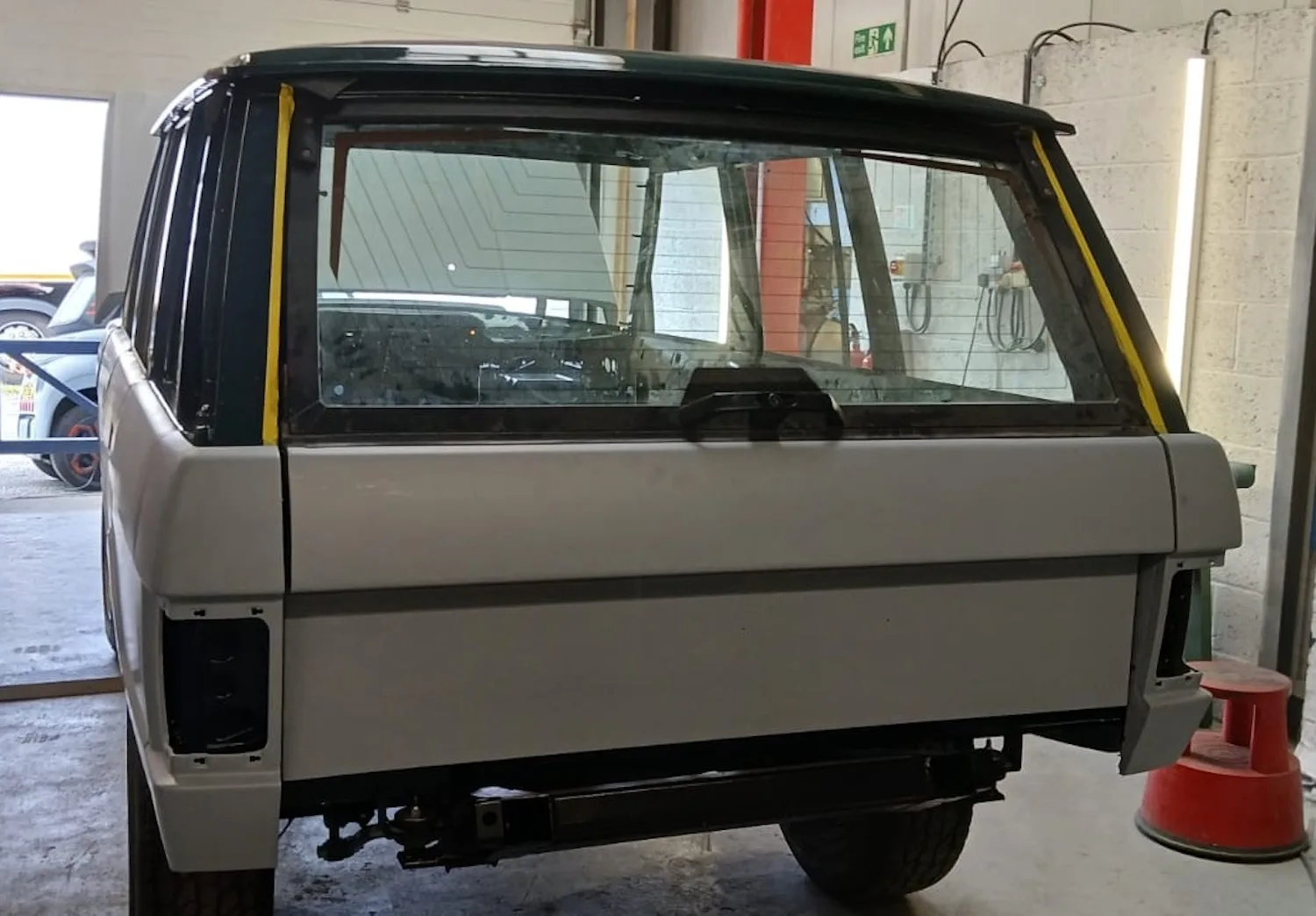

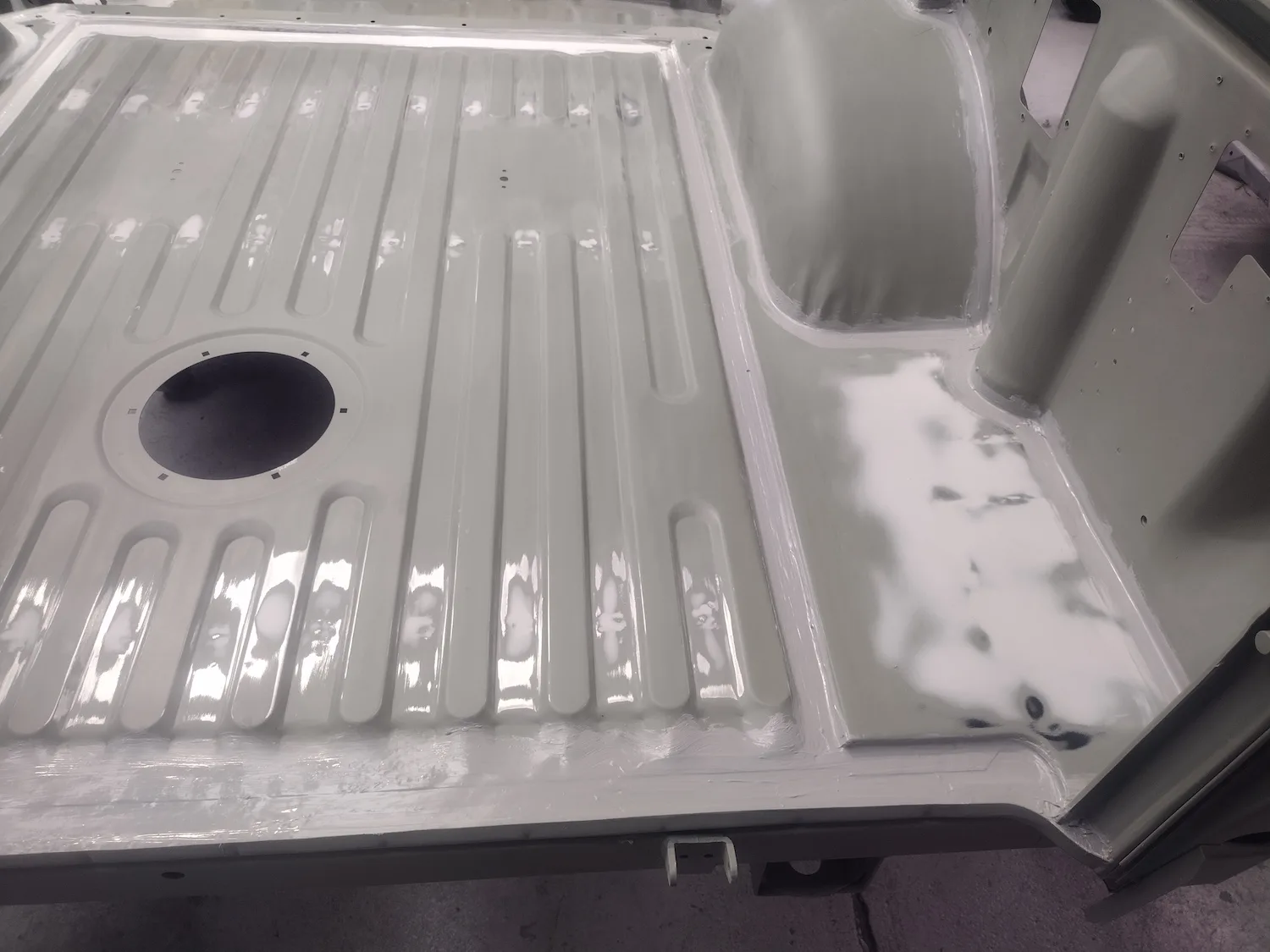

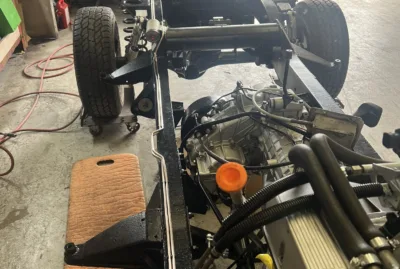

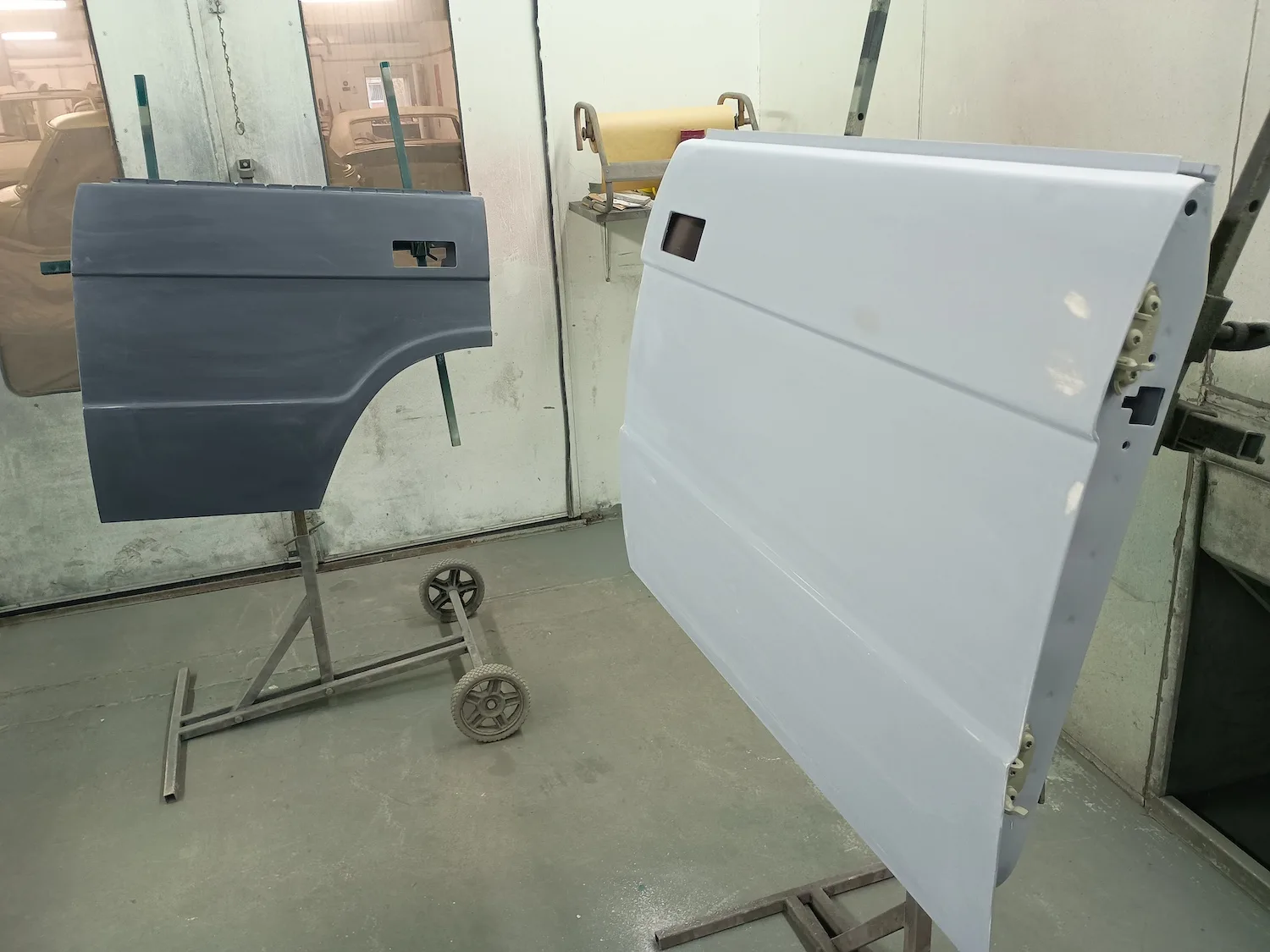

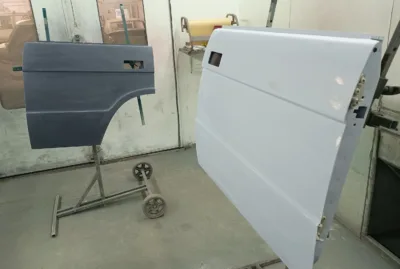

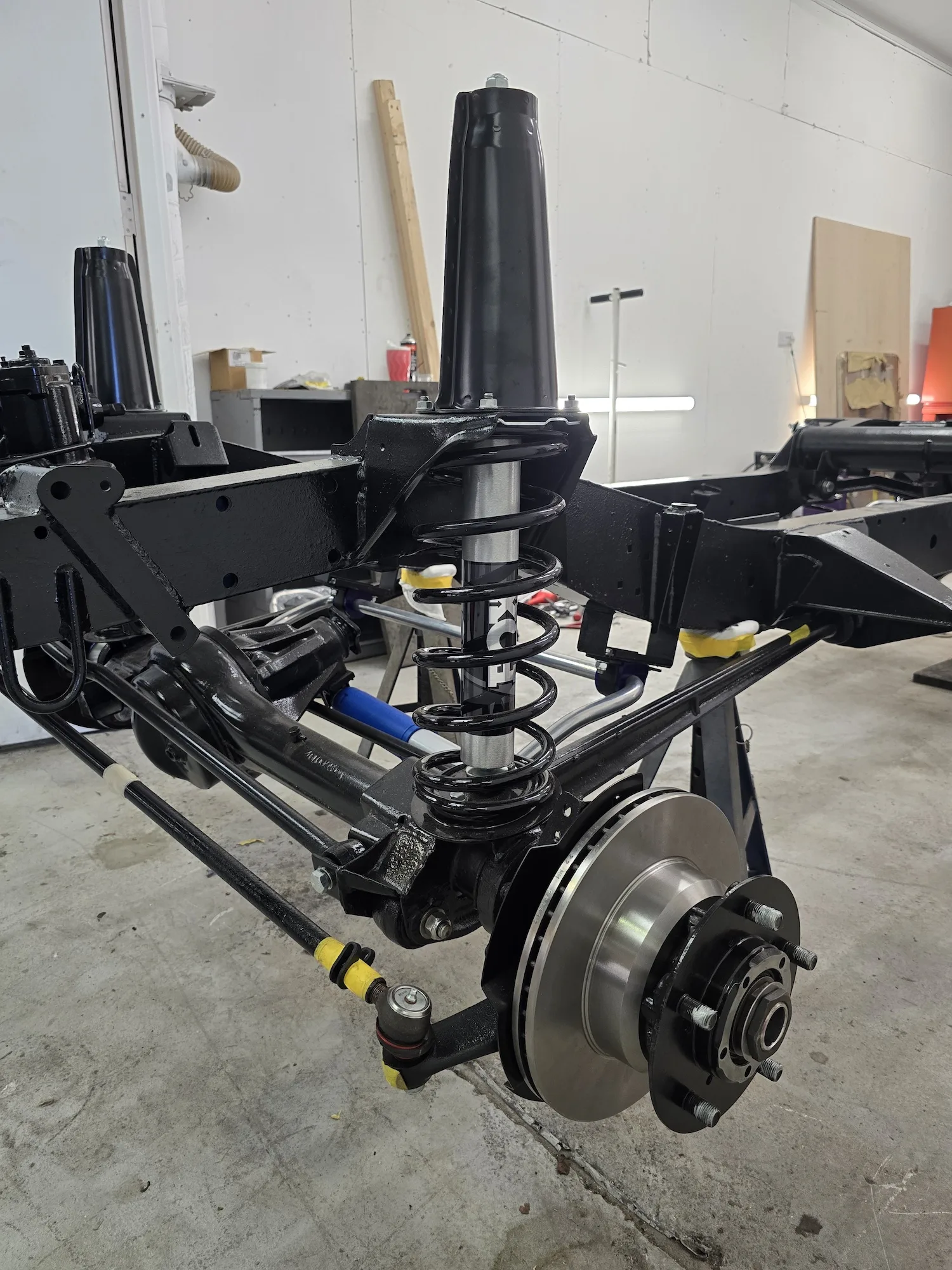

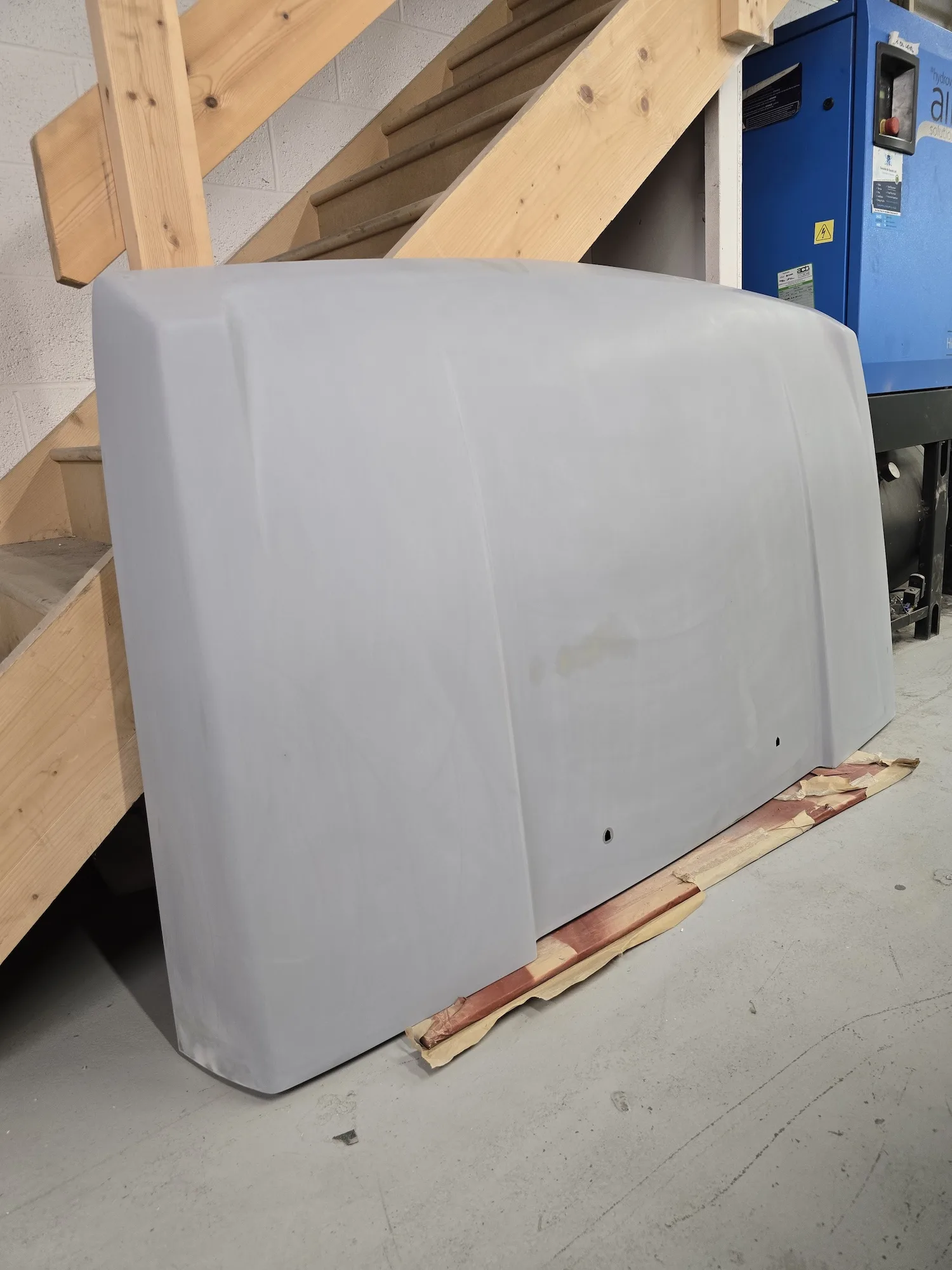

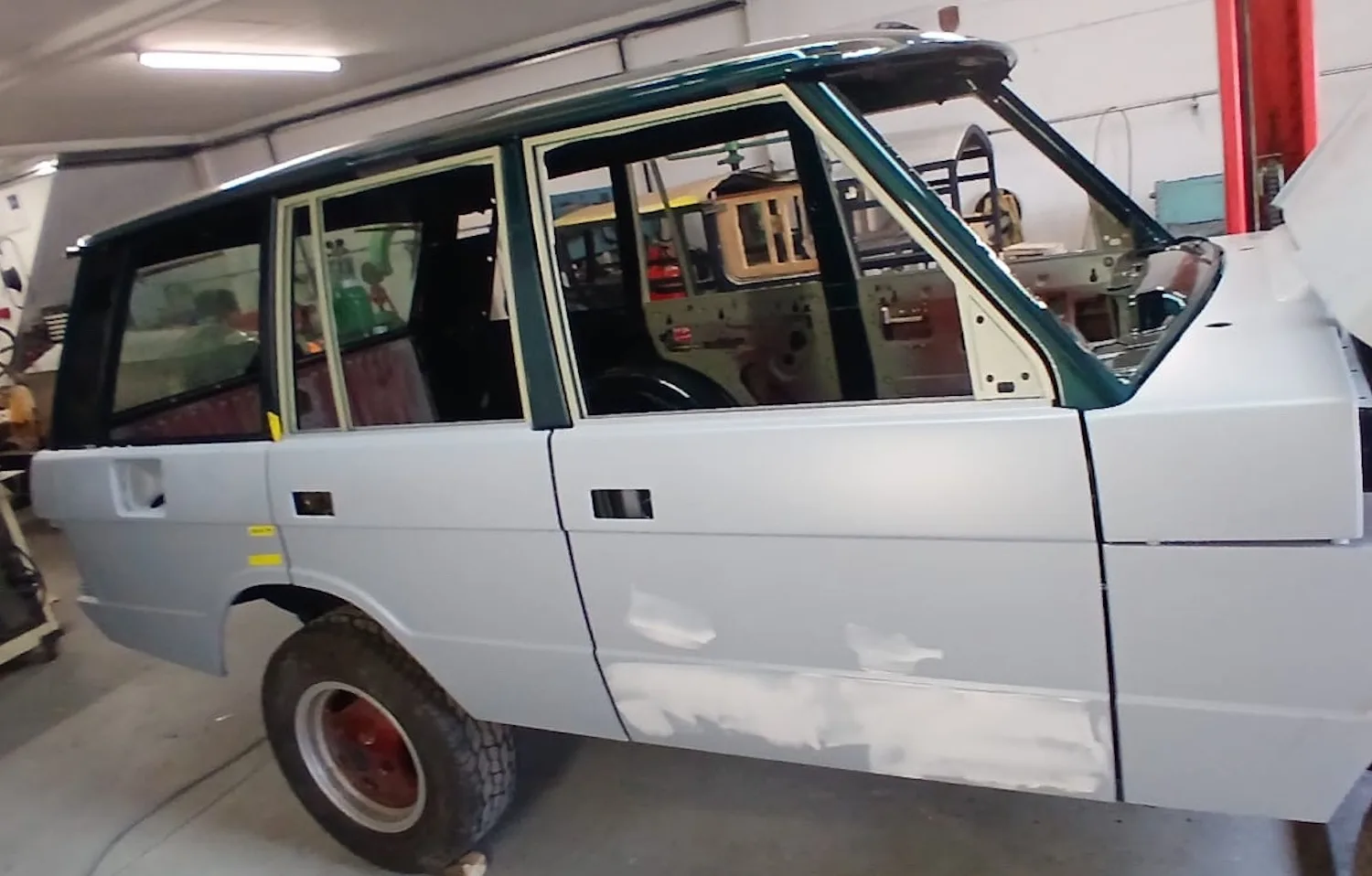

8th November 2024: The body has now been painted with primer after the first stage of prep has been carried out. The new chassis has arrived and has been painted with polycoat protect. The doors and panels have started to be stripped and prepped for paint.

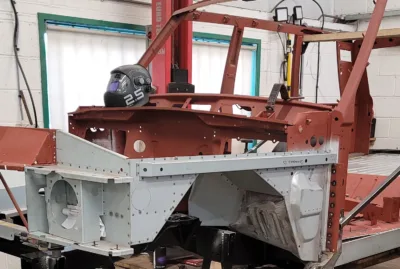

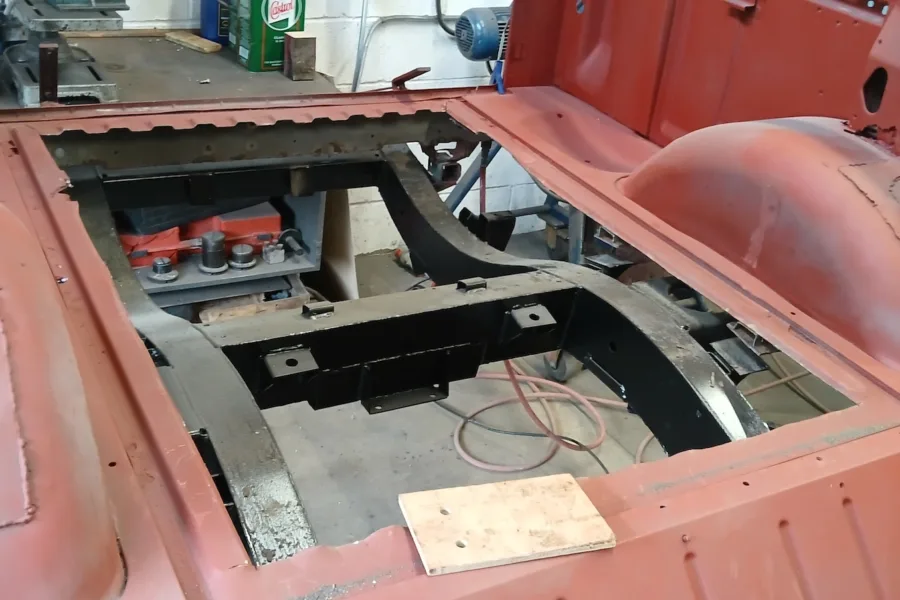

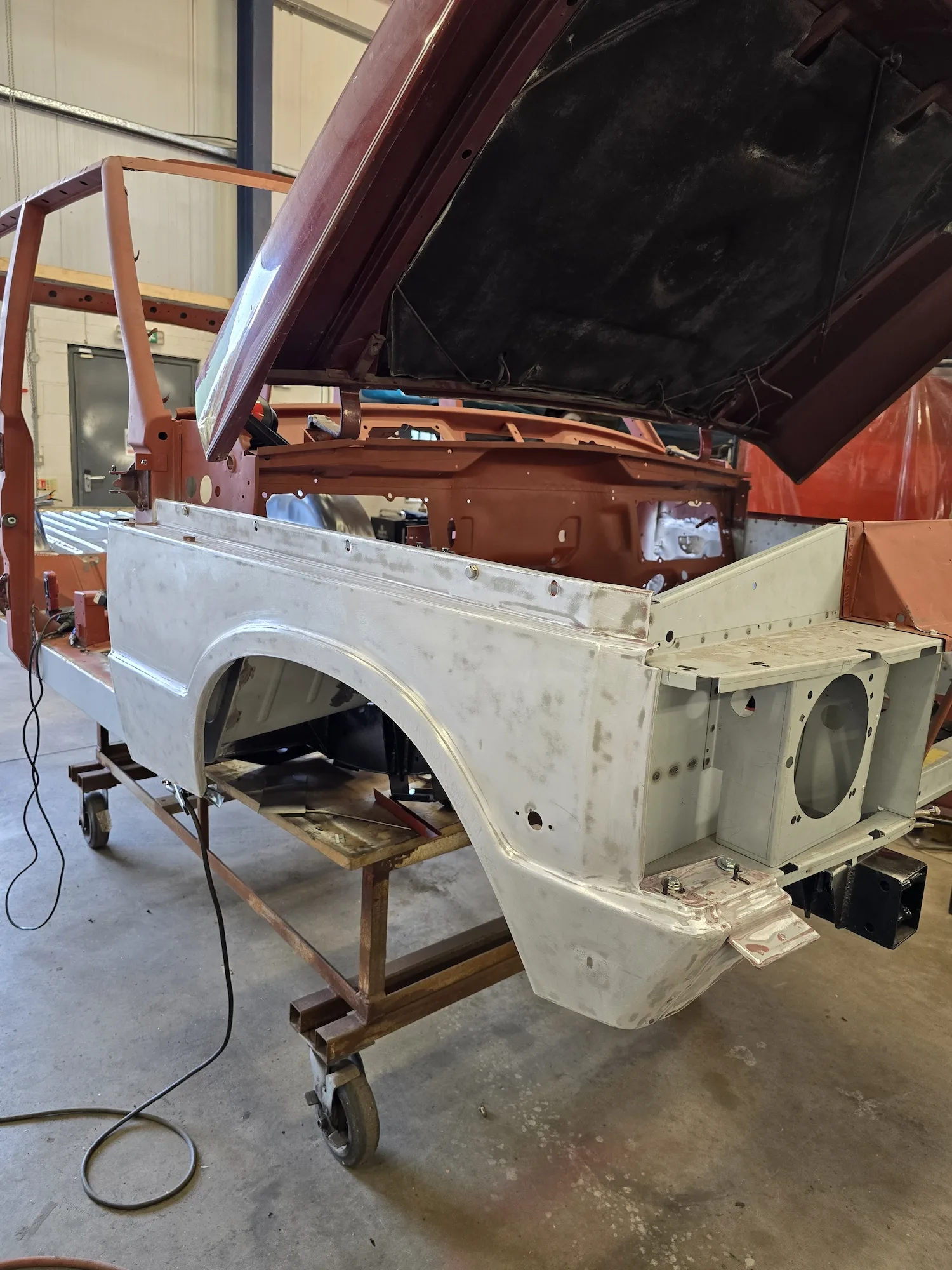

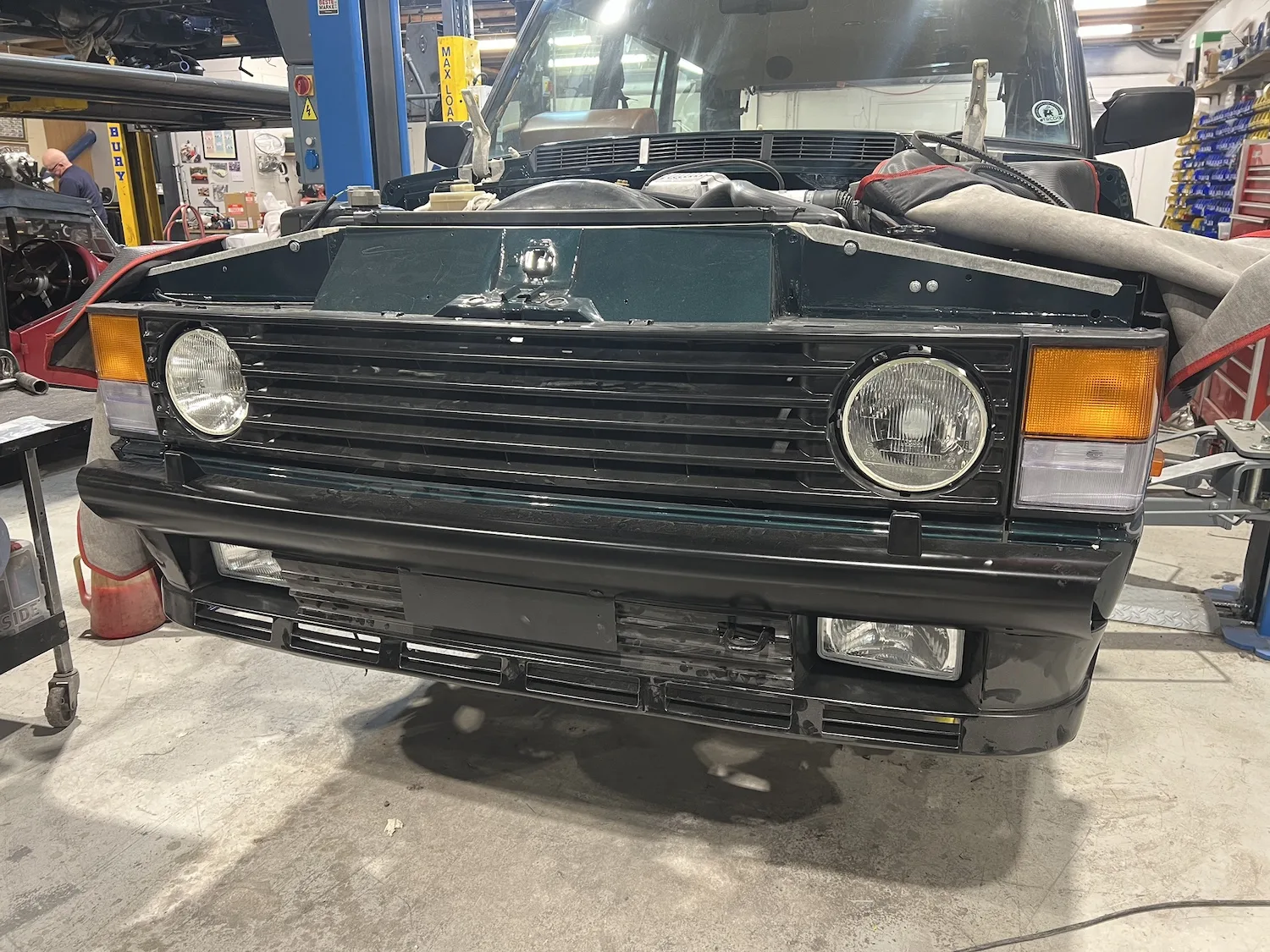

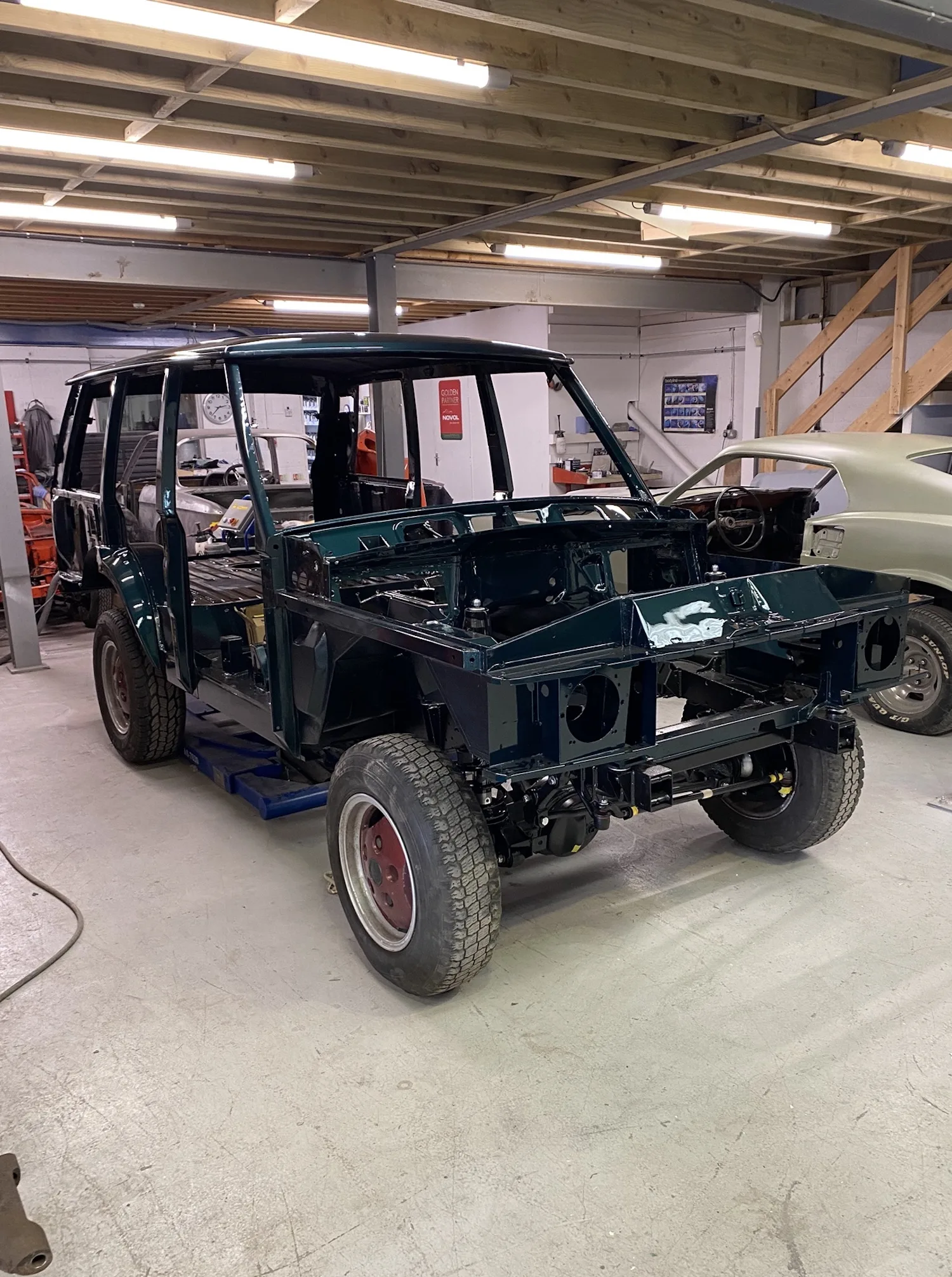

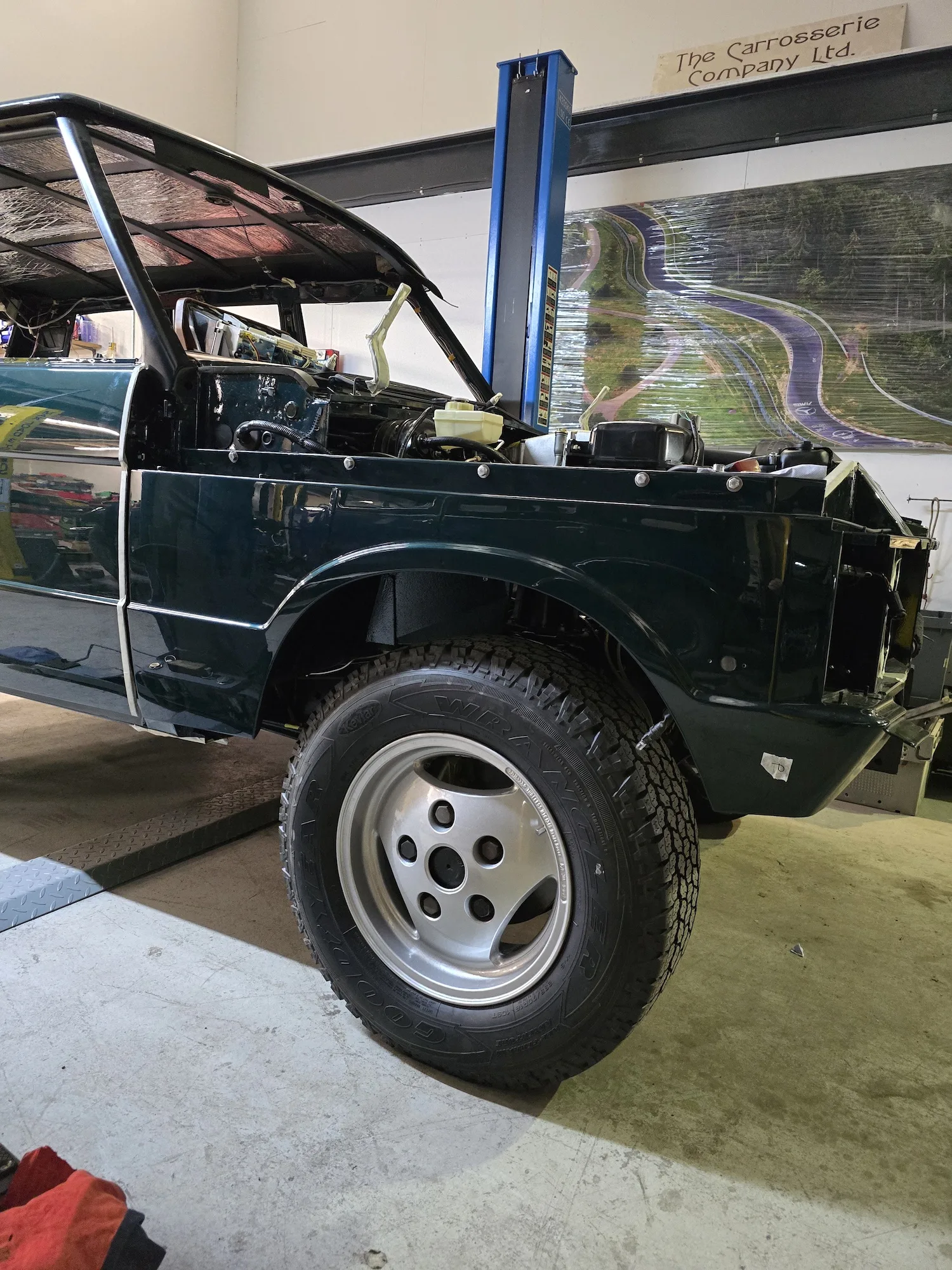

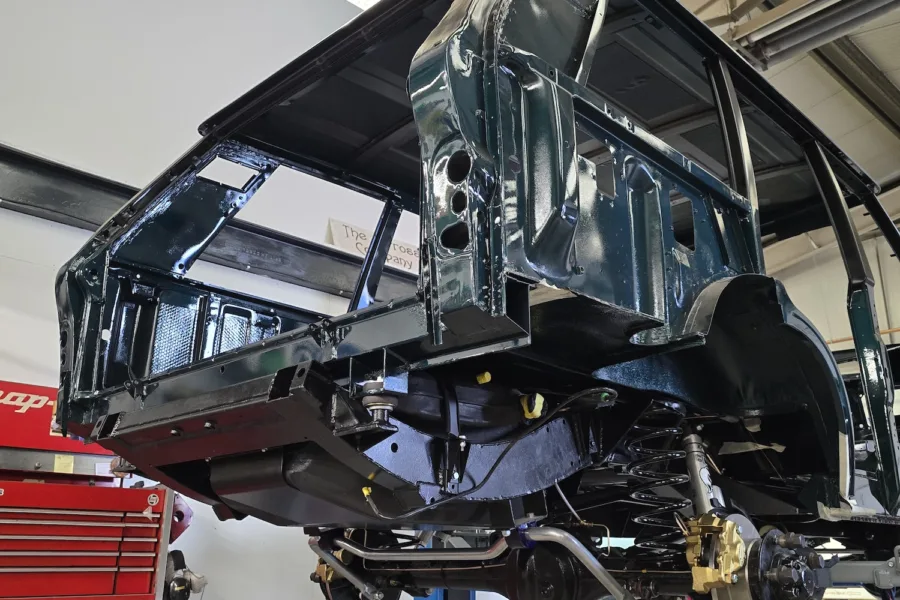

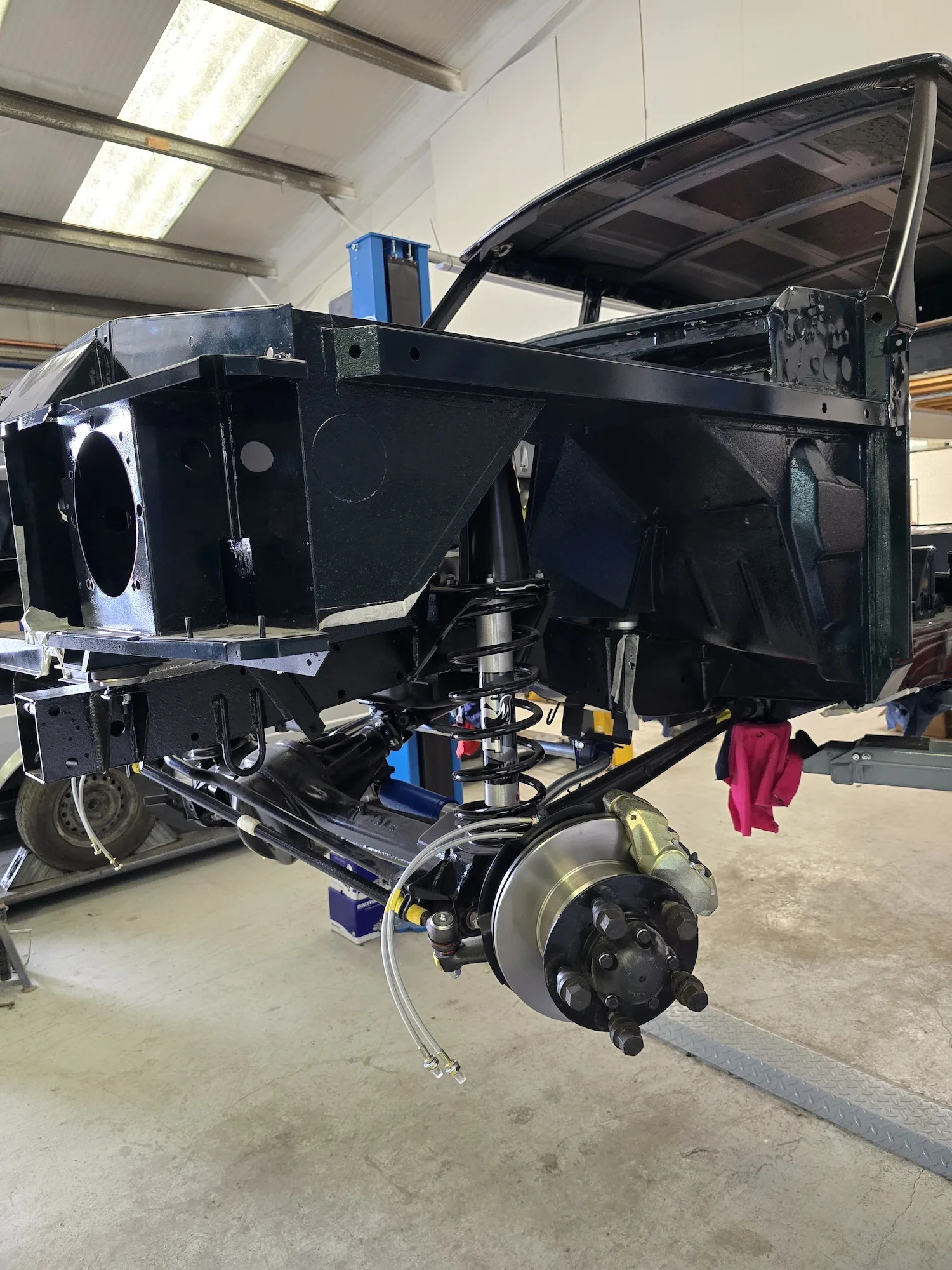

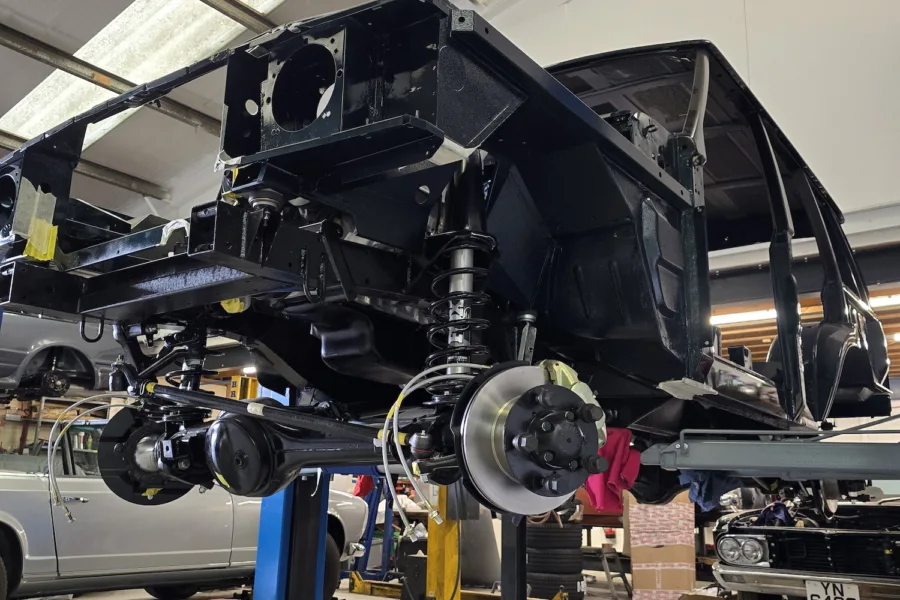

4th December 2024: The chassis and body alignment have been completed. The front end has been cut away to test the new front clip fitting. The front end has also been mocked up before everything is fitted permanently.

> More updates to follow.

The Range Rover Classic could well be the perfect multi-purpose classic: practical, spacious and easy to work on.

If you’ve kept even half an eye on early Range Rover Classic values of late, you’ll know that the three-door models in particular have shot up significantly, their value no doubt being enhanced by the sheer usability of the vehicles. The Range Rover may be a luxury icon today but when first introduced it was far more rugged and rough around the edges – although still a cut above its more agricultural siblings. Needless to say, a collectible classic isn’t quite how the Range Rover’s original designers saw it ending up. The original brief was aimed at creating a more user-friendly Land Rover rather than the prestige executive conveyance the Range Rover later became.

The Range Rover’s genesis was in the growing realisation at Solihull that the original Land Rover was severely limited as a road car, even in Tickford-developed station wagon form. A Rover P4-based prototype had even been worked up in 1951 under the Road Rover name which was more of a high-riding estate car than a serious off-roader but with Land Rover sales still buoyant, it was never pursued.

The idea was revisited in the early 1960s when Rover management was keen to enter the US market and after fact-finding junkets to America decided that the growth area was the leisure-orientated 4×4 vehicle, as illustrated by the Jeep Wagoneer and the Ford Bronco. The Road Rover concept was dusted off again, but to compete in this market would need all-wheel drive, while engineering chief Spen King also suggested coil spring suspension. At the time, leaf springs were accepted as the way to go off road, but during trials of a Bronco it had been discovered that the Ford’s front coils allowed greater wheel travel and thus superior traction.

Prototypes were built up using a simple but sturdy box-section chassis with a wheelbase of 99.9 inches which explains why the car was referred to internally as the ‘100-inch Station Wagon’. The coil springs gave the vehicle twice the axle articulation of the Land Rover and when it came to motive power, the ex-Buick V8 engine had come along at exactly the right moment. Some 90kg lighter than the old Rover straight-six engine, it also offered significantly more power and torque as well as the V8 marketing appeal which would be crucial to success in the US market.

Ironically, the Range Rover wouldn’t be sold there until 1987, something which Spen King would later out down to the expense of engineering the car to meet the country’s strict emissions and safety regulations.

With the V8 not yet in full production over here, these early prototypes used specially imported Buick engines, with the original Rochester carbs swapped for Zenith-Strombergs since the American carbs couldn’t cope with the steep angles the new vehicle was capable of.

The prototypes also used simple, utilitarian bodywork which was well liked by Rover management to the point that stylist David Bache was called upon merely to tidy it up, retaining the signature features of castellated bonnet and split tailgate.

Like the Land Rover, a steel central structure supported aluminium outer panels, although the bonnet and tailgate remained steel.

The design was signed off in 1968 and the Range Rover was launched in 1970 with just the one three-door body style and the 3.5-litre carb-fed V8 driving through a four-speed box. Incredibly, development of the automatic option and air conditioning were considered more important than the four-door body but neither would be produced first by land Rover itself: Schuler developed an automatic and a five-speed in 1979, while Swiss coachbuilder Monteverdi offered its own four-door from 1980, with input from Land Rover engineers.

The lack of investment in the product was addressed after newly installed BL chief Michael Edwardes in 1979 gave Land Rover more autonomy: in 1980 a facelift introduced the stick-on badging and revised rear lamps, while the factory four-door (based heavily on the Monteverdi conversion) and five-speed box arrived in 1981, with the automatic option following in 1982.

By this time, the Range Rover was already starting to move further upmarket and had gained plush carpeting and velour trim in place of the vinyl and rubber mats of the early cars. This was mirrored by the use of a specially prepared, more plushly trimmed Range Rover for a photo shoot in Vogue magazine, followed up by an ‘In Vogue’ special edition created by Wood & Pickett which then became a 1000-off production model before Vogue later became a regular trim level.

Refinement and trim were improved, with single-piece front windows from 1985 alongside an improved heater and electronic ignition, while fuel injection was added in 1986 and the automatic option became a four-speed ZF 4HP box. The same year saw the introduction of the first diesel Range Rover, powered by the 2.4-litre HR492 VM engine also used in the SD1.

The fuel filler was concealed under a flap in 1987, but bigger news was the switch to a chain-driven transfer box in 1988, which finally quietened the noisy transmission.
The original 3.5-litre V8 was enlarged to 3.9 litres in 1989, together with a revised dashboard at last moving the radio to the centre console and ABS appeared as an option on the Vogue SE – a first for an off-road 4×4 vehicle. This lasted until 1994 when the Range Rover received the modern soft-touch moulding developed for the Discovery II, these being known by RR buffs as the ‘soft dash’ models.

In 1990 the VM diesel was enlarged to 2.5 litres and in 1991 the CSK (after Charles Spencer ‘Spen’ King) limited edition of 200 cars was released, based on the two-door body with the 3.9 V8, ABS, sports suspension and special trim.

In 1992, a long-wheelbase version was added to the range, built on a 108-inch wheelbase and with the additional length added in the rear doors. Marketed as the LSE, this featured a new air suspension system dubbed ECAS in place of the coil springs. Based on HGV technology, it used airbags instead of springs, with an onboard compressor allowing the ride height to be varied according to speed, dropped for unloading and raised for rough cross-country driving. The LSE also received a further enlarged version of the V8, this time taken out to 4.2 litres and 200bhp.

The same year saw the VM diesel replaced by Land Rover’s own 200Tdi unit, offering 111 bhp and 195 lb.ft, itself replaced by the uprated 300Tdi in 1994, boasting the same power and torque but with improved driveabiity and economy. The LT77 manual box was replaced by the R380 five-speed.

The second-generation P38a was released in 1994 but the original Range Rover lived on until February 1996, gaining the tag Range Rover Classic. When it left production, a total of 317,615 had been made since 1970.

As a classic today, even the earliest Range Rover Classic makes a surprisingly practical proposition despite being nearly half-a-century old. The Range Rover’s simple construction and easy-to-digest engineering makes it very DIY friendly, but buying the wrong example can easily swallow up the cost of buying a good car in the first place. Buy well and you’ll have a truly useable family classic on your hands – and one that’s almost guaranteed to hold onto its value for the foreseeable future.

1991 Range Rover Classic Vogue | Classic Car Restoration | Carrosserie
Karen Innes
Friendly, helpful, extremely knowledgeable, patient enough to explain the processes and reasons for doing things and highlighted even more how approachable the team are. They tried to accommodate our needs and requests to get our beloved old riley back on the road as soon as possible despite the ups and downs that were thrown our way and into the teams path! We could not have wished to deal with a more personable company after encountering some other teams that really made a botch of stuff, seemed uncommitted and were not professional at all. Carrosserie as a team were totally the opposite . . would we recommend them ? ABSOLUTELY !!! We would not go anywhere else now, THANK YOU TO Steve, Neil, Graham and Nicola . . Oh and Karen who spilled the beans about the the birthday surprised to my partner (whose car it is ) . but made the experience all the more special when a bottle of wine was presented as well as a treat to Simon for his birthday AND made it all the more worth dealing with the team ! THANK YOU AGAIN !!!
Graeme Phillips
My car was the subject of some body and paint repairs here in Spring 2024, to address corrosion plus some substandard paintwork. An annual service was also carried out. There was good responsive communications, advice, and attention to detail throughout, to ensure a high quality, durable result, with the final paintwork being indistinguishable from factory finish, and easily better than any franchised dealership repairs. If you are invested in your classic car, want to make it last, with an exemplary finish to be proud of, then you need look no further.
Steve
I can't recommend Carrosserie highly enough, the service was exemplary from start to finish and the workmanship is second to none. I highly recommend giving the team a call for any work you need doing to your classic car, no matter what it is, you will not be disappointed!

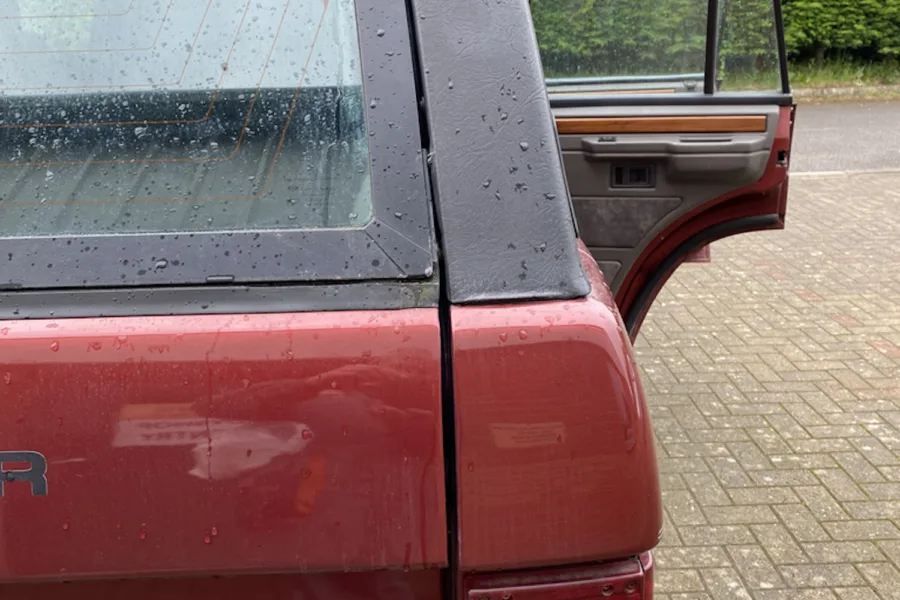

14th May 2024
